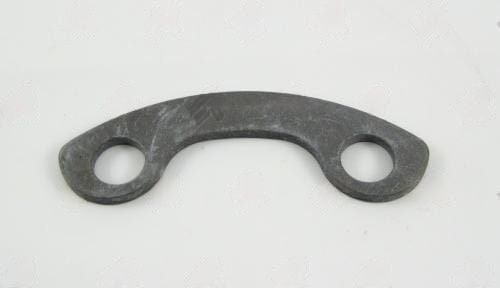

2715-016 Washer and Snap Ring Thickness 0.1"

The 2715-016 is a driveshaft washer and snap ring with a thickness of 0.1". Used in U-joint and driveshaft assembly applications where a 0.1" shim dimension is required.

Specifications

• Part Number: 2715-016
• Thickness: 0.1"

When selecting the 2715-016, confirm the required shim thickness is 0.1". This is thicker than the 2715-285 (0.04") and provides a larger axial adjustment increment for U-joint cap seating or driveshaft assembly endplay control. Select the thickness that achieves the specified endplay per the assembly procedure.

Washer and snap ring shims set endplay or preload in driveshaft component assemblies. The 0.1" thickness of the 2715-016 provides a larger increment than the 0.04" 2715-285 version. Incorrect shim thickness will affect joint engagement and bearing life.

Confirm the 2715-016 thickness (0.1") against the assembly requirement before ordering. Cross-reference with other shim thicknesses in the 2715 series to determine which combination achieves the specified endplay for the target application.
