230123-15 – Washers & Snap Ring – Thickness 125″ – Inside Dia 01.03″ – Outside Dia 1.875″

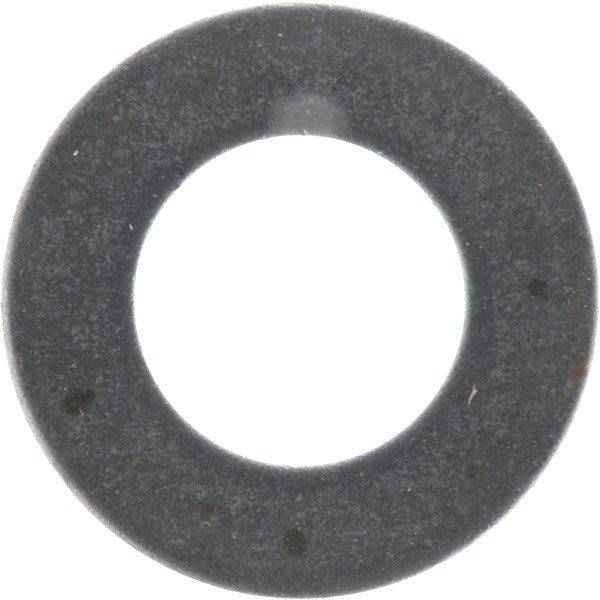

230123-15 Washer and Snap Ring 1.03" ID x 1.875" OD

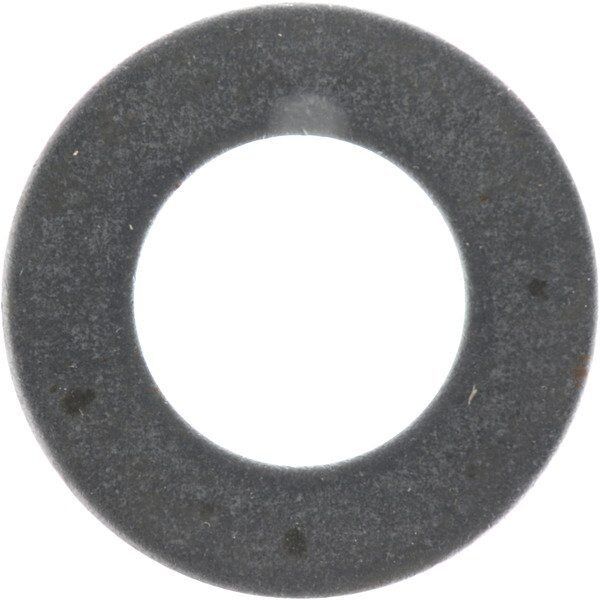

The 230123-15 is a driveshaft washer and snap ring with an inside diameter of 1.03", an outside diameter of 1.875", and a thickness of 0.125". Used in driveshaft assembly applications where these bore and OD dimensions are required.

Specifications

• Part Number: 230123-15
• Inside Diameter: 1.03"
• Outside Diameter: 1.875"
• Thickness: 0.125"

When selecting the 230123-15, verify the bore (1.03") and OD (1.875") match the application requirements. The 1.03" ID positions this washer over a shaft of that nominal diameter. Confirm the shaft OD and the mating housing or recess dimension against the 1.875" OD before ordering. The ID, OD, and thickness are all functional dimensions.

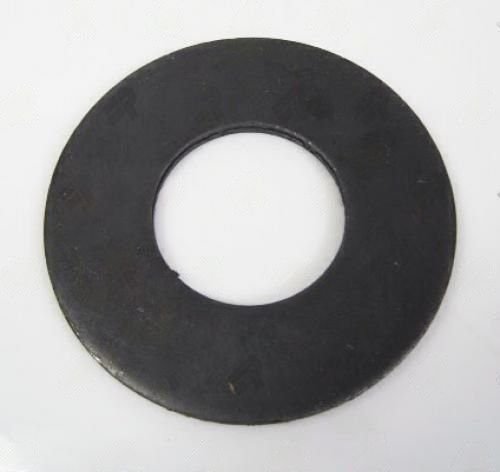

The 0.125" thickness of the 230123-15 is a thin shim washer. Verify all three dimensions against the assembly drawing. The 230123-6 (1.281" ID, 2.75" OD, 0.156" thick) is the larger variant in the same series for applications requiring a larger bore and OD engagement.

The 1.03" ID and 1.875" OD are the primary fitment dimensions for the 230123-15. Confirm both against the target assembly. Using a washer with the wrong ID or OD will affect axial positioning and may allow the component to shift in service.
