230123-6 – Washers & Snap Ring – Thickness 156″ – Inside Dia 1.281″ – Outside Dia 2.75″

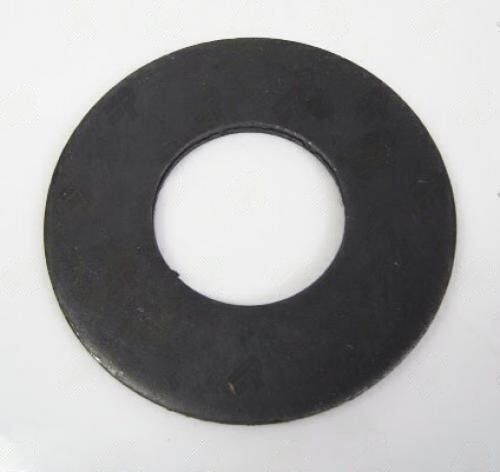

230123-6 Washer and Snap Ring 1.281" ID x 2.75" OD

The 230123-6 is a driveshaft washer and snap ring with an inside diameter of 1.281", an outside diameter of 2.75", and a thickness of 0.156". Used in driveshaft assembly applications where these bore and OD dimensions are required.

Specifications

• Part Number: 230123-6
• Inside Diameter: 1.281"
• Outside Diameter: 2.75"
• Thickness: 0.156"

When selecting the 230123-6, verify the bore (1.281") and OD (2.75") both match the application. The 1.281" ID positions this washer over a shaft or hub of that nominal diameter. The 2.75" OD must clear or seat against the mating bore or recess in the assembly. The ID, OD, and thickness are all functional dimensions.

The 230123-6 at 0.156" thickness is used where a defined axial shim dimension is needed along with controlled bore and OD engagement. Selecting by part number alone without verifying all three dimensions against the assembly drawing will result in incorrect fitment.

The 1.281" ID and 2.75" OD are the primary dimensions for the 230123-6. The 230123-15 (1.03" ID, 1.875" OD, 0.125" thick) covers a different bore and OD range in the same series. Confirm all three dimensions (ID, OD, thickness) before ordering the 230123-6.
