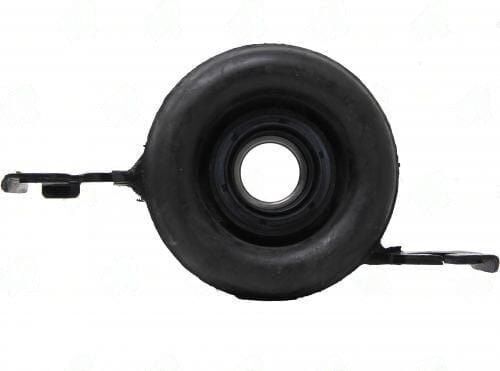

2680-60 – Center Support Bearing – MAZDA – 1.102 – 1.750 – 6.875
$102.84
3 in stock
13 People watching this product now!
Description
2680-60 center support bearing, MAZDA series. 1.102″ inner dia | 1.750″ center-to-base | 6.875″ mount hole spacing. Verify inner diameter and mount hole spacing before ordering.
Full Description
The rubber isolator in a worn center support bearing cracks and hardens over time. The 2680-60 comes with a fresh rubber mount and correctly sized bearing race.
2680-60 Center Support Bearing -- MAZDA Series Dimensions
Specs on the 2680-60 center support bearing: 1.102" inner dia | 1.750" center-to-base | 6.875" mount hole spacing. Mazda MPV 4X2 (89-98), CB mounts at an offset . one bracket even( 3.45 bracket ) and the opposite side mounts 1.75" below ( 2.41 bracket ). Built for MAZDA series applications. The inner diameter must match your midshaft stub -- too loose and the bearing walks; too tight and it won't press on.
Mount hole center-to-center spacing is the most overlooked spec on CSBs. If the holes don't match your crossmember bracket, the bearing will be offset and the shaft will run off-center.
Key Features
- Application: MAZDA series -- verify your driveshaft series matches
- Bearing inner dia: 1.102" -- must match midshaft stub OD exactly
- Center-to-base: 1.750" -- height from shaft centerline to mounting surface
- Mount hole spacing: 6.875" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
- Note: Mazda MPV 4X2 (89-98), CB mounts at an offset . one bracket even( 3.45 bracket ) and the opposite side mounts 1.75" below ( 2.41 bracket )
Specifications
- SKU: 2680-60
- Brand: UDS
- Application: MAZDA Series
- Bearing ID: 1.102"
- Center to Base: 1.750"
- Mount Hole Spacing: 6.875"
- Notes: Mazda MPV 4X2 (89-98), CB mounts at an offset . one bracket even( 3.45 bracket ) and the opposite side mounts 1.75" below ( 2.41 bracket )
Additional information
| Application | MAZDA |
|---|---|
| Bearing id | 1.102 |
| Center bearing to base | 1.750 |
| Ctr to ctr of mount holes | 6.875 |
| Notes | Mazda MPV 4X2 (89-98), CB mounts at an offset . one bracket even( 3.45 bracket ) and the opposite side mounts 1.75" below ( 2.41 bracket ) |
| Partn number | 2680-60 |
