2680-70 – Center Support Bearing – MAZDA – 1.102 – 1.750 – 6.875
$104.00
2 in stock
15
People watching this product now!
Description
2680-70 Center Support Bearing for Mazda. 1.102″ ID, 1.750″ height, 6.875″ mount spacing. Offset bracket — one side 3.45″, opposite 1.75″ lower. Verify fitment.
Full Description

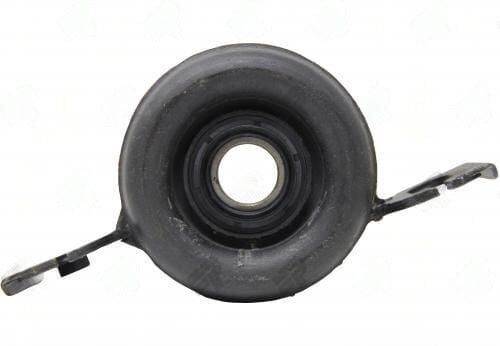

2680-70 Center Support Bearing – Mazda – 1.102" ID – 1.750" Height – 6.875" Mount Spacing – Offset Bracket
The 2680-70 is a center support bearing for Mazda applications. Bearing ID is 1.102", center bearing to base height is 1.750", and mount hole center-to-center spacing is 6.875". Per the product notes, this bracket mounts at an offset: one bracket side is even at 3.45" and the opposite side mounts 1.75" below at 2.41".
Specifications
- Part Number: 2680-70
- Application: Mazda
- Bearing ID: 1.102"
- Center Bearing to Base: 1.750"
- Ctr to Ctr of Mount Holes: 6.875"
- Notes: CB mounts at an offset — one bracket at 3.45", opposite side 1.75" below at 2.41"
When fitting the 2680-70, verify the midshaft stub OD matches the 1.102" bearing ID and the Mazda bracket holes are 6.875" center-to-center. The asymmetric offset mount is critical to correct installation — the bracket does not mount level. The higher side sits at 3.45" and the lower side at 2.41" height, a 1.75" differential. Reversing the bracket orientation will misalign the driveshaft.
The 2680-70 and 2680-60 share identical specifications including the 6.875" mount spacing, 1.102" ID, 1.750" height, and the same offset bracket configuration. The distinction between these two part numbers is in their specific Mazda application — the 2680-60 is listed for Mazda MPV 4x2 (89–98). Confirm which Mazda application applies before selecting between 2680-70 and 2680-60.
Additional information
| Application | MAZDA |
|---|---|
| Bearing id | 1.102 |
| Center bearing to base | 1.750 |
| Ctr to ctr of mount holes | 6.875 |
| Notes | CB mounts at an offset . one bracket even( 3.45 bracket ) and the opposite side mounts 1.75″ below ( 2.41 bracket ) |
| Partn number | 2680-70 |
