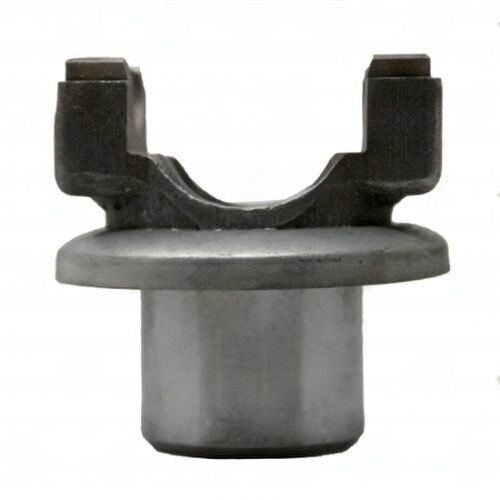

2604-32 – End Yoke – 7260 Series – 1.401″ Splines Dia – 2.125″ Hub Dia
$102.33
1 in stock
18 People watching this product now!
Description
End yoke 2604-32, 7260. Specs: 1.401 x 32 spline | 2.125″ hub dia | 3.625″ CJ-to-end | 2.000″ bore. FITS 203/205 TRANSFER CASE STRAP KIT PART NUMBER: 2670-10. Spline count and series must match.
Full Description
The 2604-32 end yoke mates with the axle output shaft via splined bore -- pull the old one, verify the spline count and series, press the new one on.
2604-32 End Yoke -- 7260 Series Spline & Fitment
The 7260 series is the standard for GM light trucks and vans using the Dana 7260 cross pattern. The 2604-32 end yoke specs: 1.401 x 32 spline | 2.125" hub dia | 3.625" CJ-to-end | 2.000" bore. Note: FITS 203/205 TRANSFER CASE STRAP KIT PART NUMBER: 2670-10.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 7260 -- GM light trucks and vans using the Dana 7260 cross pattern
- Spline: 1.401 x 32 -- must match axle/T-case shaft exactly
- Hub dia: 2.125" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.625" -- affects driveshaft working length and angle
- Bore: 2.000" -- confirm against shaft OD
- Retention: BS -- verify against your yoke configuration
- Note: FITS 203/205 TRANSFER CASE STRAP KIT PART NUMBER: 2670-10
Specifications
- SKU: 2604-32
- Brand: UDS
- Series: 7260
- Spline Dia: 1.401
- Spline Count: 32
- Hub Dia: 2.125"
- CJ to End: 3.625"
- Through Hole: 2.000"
- Style: BS
- Notes: FITS 203/205 TRANSFER CASE STRAP KIT PART NUMBER: 2670-10
Additional information
| Cj to end | 3.625 |
|---|---|
| Hub dia | 2.125 |
| Notes | FITS 203/205 TRANSFER CASE STRAP KIT PART NUMBER: 2670-10 |
| Partn number | 2604-32 |
| Series | 7260 |
| Splines count | 32 |
| Splines dia | 1.401 |
| Style | BS |
| Through hole | 2.000" |
