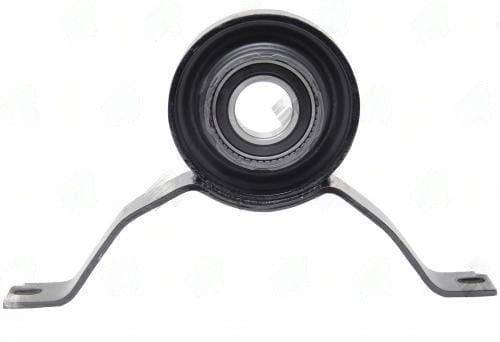

2580-70 – Center Support Bearing – Audi Application – 1.181″ ID – 4.125″ Center Bearing To Base
$119.86
1 in stock
Description
2580-70 center support bearing, Audi AWD application, 1.181″ bore, 4.125″ center-to-base, 9.500″ mount hole spacing.
Full Description
Q: Why does the 2580-70 have a 4.125" center-to-base height?
A: Audi's longitudinal AWD platform positions the propshaft tunnel high on certain body styles. The 4.125" height keeps the bearing at the correct centerline height relative to the tunnel floor, maintaining the factory driveshaft angle. Substituting a shorter carrier would drop the midshaft and increase rear U-joint working angle.
Q: The mount span is 9.500" -- is that the widest in the Audi range?
A: Close -- 2580-75 is slightly longer at 9.375" on a narrower span (note: 9.375" vs 9.500"). The 2580-70 at 9.500" fits the widest Audi CSB crossmember in this group.
Q: Any cross-references?
A: Check Febi Bilstein and FAG/Schaeffler Audi carrier assemblies. Always verify all three dimensions. See the center support bearing catalog for the full Audi range.
Additional information
| Application | Audi |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 4.125 |
| Ctr to ctr of mount holes | 9.500 |
| Notes | Double check centerline to centerline and bearing height. |
| Partn number | 2580-70 |
