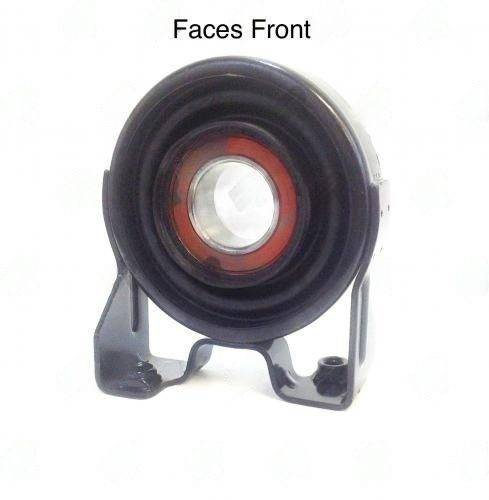

2580-65 Center Support Bearing CBPC Cayenne 03-10, Tuareg 04-08, CV Boot 2518-651 will need to be replaced with this bearing.
$40.94
+50 in stock
Description
2580-65 center support bearing, multiple-application fitment, 1.181″ bore, 2.750″ center-to-base, 2.960″ mount hole span.
Full Description
| Specification | Value |
|---|---|
| Part Number | 2580-65 |
| Application | Multiple (verify by measurement) |
| Bearing ID | 1.181" |
| Center Bearing to Base | 2.750" |
| Mount Hole Span (C-to-C) | 2.960" |
- 2.960" mount span is unusually narrow -- confirms a tight-clearance application
- Multiple-application listing: verify bore, height, and span against removed unit
- 2.750" center-to-base sets shaft angle at the tunnel hanger point
The 2580-65 carries one of the narrowest mount spans in the 2580 series at 2.960". This is a specialized fitment where the tunnel crossmember has closely spaced mounting holes. The multiple-application designation means more than one make uses this geometry -- confirm your vehicle against all three key dimensions using the removed part before ordering. See the center support bearing catalog for cross-application data.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.750 |
| Ctr to ctr of mount holes | 2.965 |
| Notes | Cayenne 03-10, Touareg 04-08, CV Boot 2518-651 will need to be replaced with this bearing. |
| Partn number | 2580-65 |
