2580-60 – Center Support Bearing – Audi Application – 1.181″ ID – 3.000″ Center Bearing To Base
$119.86
10 in stock
Description
2580-60 center support bearing, Audi application, 1.181″ bore, 3.000″ center-to-base height, 7.000″ mount hole spacing.
Full Description

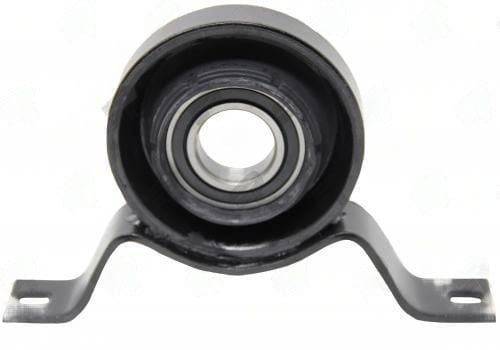

2580-60 -- Audi Driveshaft Center Support Bearing
The 2580-60 targets Audi quattro platforms with a 7.000" bolt circle -- a moderately wide bracket found on mid-sized Audi sedans and crossovers. The 3.000" center-to-base height is a clean engineering round number, suggesting this was a purpose-designed carrier for a specific Audi chassis rather than a cross-application part.
Failure on these units often appears as a rumbling or growling noise that increases with vehicle speed. A quick diagnostic: with the vehicle on a hoist at idle, have an assistant slowly accelerate while you listen near the center hanger point. The noise will intensify at specific shaft speeds corresponding to the inner race RPM. At that point the bearing is already damaged; continue driving and the inner race can seize on the stub shaft, destroying the shaft's machined surface.
Cross-references: Febi and FAG/Schaeffler carry Audi-specific CSB assemblies. See the center support bearing catalog for the full Audi 2580 series range.
Additional information
| Application | Audi |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 3.000 |
| Ctr to ctr of mount holes | 7.000 |
| Notes | Double check centerline to centerline and bearing height. |
| Partn number | 2580-60 |
