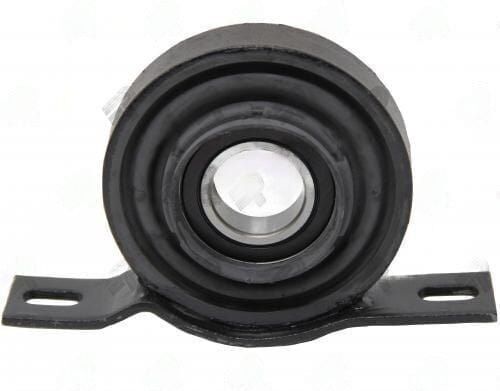

2580-10 – Center Support Bearing – Audi Application – 1.181″ ID – 1.750″ Center Bearing To Base
$127.84
10 in stock
16
People watching this product now!
Description
2580-10 center support bearing. 1.181″ inner dia | 1.750″ center-to-base | 5.250″ mount hole spacing. App: Audi series. Two-piece driveshaft midshaft support — complete assembly.
Full Description
The 2580-10 center support bearing -- inner diameter matches the midshaft diameter, mount hole spacing matches your crossmember bracket. Measure both before ordering.
2580-10 Center Support Bearing -- Audi Series Dimensions
Specs on the 2580-10 center support bearing: 1.181" inner dia | 1.750" center-to-base | 5.250" mount hole spacing. Double check centerline to centerline and bearing height.. Built for Audi series applications. The inner diameter must match your midshaft stub -- too loose and the bearing walks; too tight and it won't press on.
Mount hole center-to-center spacing is the most overlooked spec on CSBs. If the holes don't match your crossmember bracket, the bearing will be offset and the shaft will run off-center.
Key Features
- Application: Audi series -- verify your driveshaft series matches
- Bearing inner dia: 1.181" -- must match midshaft stub OD exactly
- Center-to-base: 1.750" -- height from shaft centerline to mounting surface
- Mount hole spacing: 5.250" -- must match crossmember bracket hole pattern
- Rubber isolator included -- absorbs vibration, reduces NVH at the midshaft
- Complete assembly -- bearing race, rubber mount, and bracket in one unit
- Note: Double check centerline to centerline and bearing height.
Specifications
- SKU: 2580-10
- Brand: UDS
- Application: Audi Series
- Bearing ID: 1.181"
- Center to Base: 1.750"
- Mount Hole Spacing: 5.250"
- Notes: Double check centerline to centerline and bearing height.
Additional information
| Application |
Audi |
|---|---|
| Bearing id |
1.181 |
| Center bearing to base |
1.750 |
| Ctr to ctr of mount holes |
5.250 |
| Notes |
Double check centerline to centerline and bearing height. |
| Partn number |
2580-10 |
