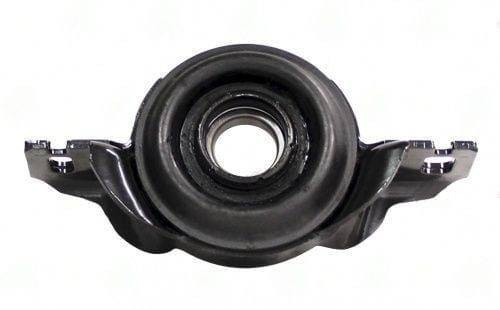

2480-60 – Center Support Bearing – 1.181″ ID – 7.000″ Ctr To Ctr Of Mount Holes – Multiple Application
$103.42
10 in stock
Description
2480-60 center support bearing, multiple-application fitment, 1.181″ bore, 0″ center-to-base (flush), 7.000″ mount spacing.
Full Description
The 2480-60 is a flush-mount center support bearing (center-to-base = 0") that fits multiple vehicle applications sharing a 7.000" bracket mount span and 1.181" bore. The flush profile means the bearing centerline is at base-plate level, placing it on platforms where the propshaft runs very close to the tunnel floor structure.
- Part: 2480-60 | Multiple applications -- verify all dims
- Bore: 1.181" | Center-to-base: 0" (flush) | Mount span: 7.000" C-to-C
- Sealed, pre-greased -- no repack interval
- Multiple-application designation: measure removed unit, do not rely on vehicle name alone
Tip: When ordering a multi-application CSB, photograph the removed unit from three angles (top, side, end) before disassembly. The bracket bolts can look identical across platforms while the carrier geometry differs. A photo prevents ordering errors more reliably than a vehicle lookup alone.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 7.000 |
| Notes | Toyota Highlander (01-06) Lexus RX300/330 (99-06) |
| Partn number | 2480-60 |
