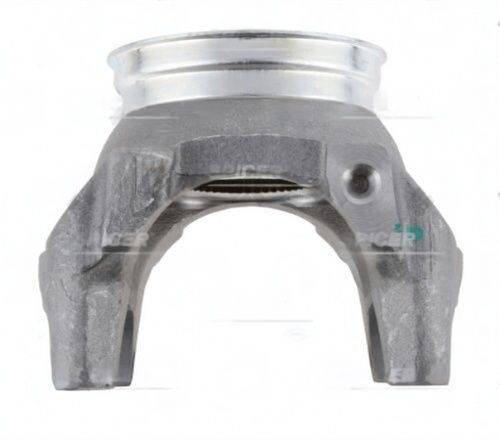

250-4-41-1 – End Yoke – 2.274″ Splines dia – 2.938″ Hub Dia – SPL250 Series
$296.77
1 in stock
11 People watching this product now!
Description
250-4-41-1 End Yoke — SPL250 series, 2.274 x 44 spline | 2.938″ hub dia | 5.238″ CJ-to-end | 2.350″ bore. Professional replacement, spline-specific fit. Count splines before ordering.
Full Description
End yoke failures are usually easy to diagnose: cracked ears, worn splines, or corrosion at the cap bores. Whatever the cause, the 250-4-41-1 end yoke is the direct replacement for SPL250 series applications. Spline count and shaft diameter both have to match — verify yours before ordering.
250-4-41-1 End Yoke — Spline Specs & SPL250 Series Fitment
The 250-4-41-1 end yoke specs: 2.274 x 44 spline | 2.938" hub dia | 5.238" CJ-to-end | 2.350" bore. Hub diameter is the outer dimension that clears the axle housing or T-case bore. CJ-to-end determines how the u-joint positions relative to the flange or seal surface.
Count the splines on your output shaft — don't go by the vehicle model alone. Axle swaps and rebuilds can change the spline count from the original. The 250-4-41-1 end yoke is dimensioned for one spline specification; putting it on the wrong shaft will damage both the yoke and the shaft.
Key Features
- Series: SPL250 — application-specific
- Spline: 2.274 x 44 — must match output shaft exactly
- Hub dia: 2.938" — outer dimension, verify clearance
- CJ-to-end: 5.238" — positions u-joint relative to axle flange
- Bore: 2.350"
- Style: BS
- Brand: UDS
Specifications
- SKU: 250-4-41-1
- Brand: UDS
- Series: SPL250
- Spline Dia: 2.274
- Spline Count: 44
- Hub Dia: 2.938"
- CJ to End: 5.238"
- Through Hole: 2.350"
- Style: BS
Additional information
| Cj to end | 5.238 |
|---|---|
| Hub dia | 2.938 |
| Partn number | 250-4-41-1 |
| Series | SPL250 |
| Splines count | 44 |
| Splines dia | 2.274 |
| Style | BS |
| Through hole | 2.350" |
