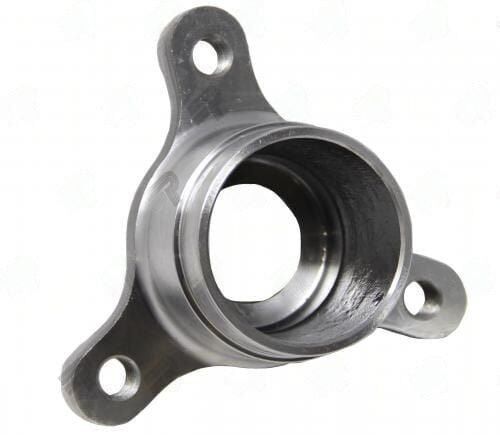

2426-106 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Butt Dia 2.344″ – Face To Weld 1.000
$73.11
5 in stock
10 People watching this product now!
Description
2426-106 prong flange — 105MM bolt circle | 12MM bolt holes | 2.344″ butt dia | 1.000″” face-to-weld | fits 2.500X0.083 tube. Weld-on metric driveshaft connection. LEXUS.
Full Description
The 2426-106 prong connector welds to the driveshaft tube and bolts to the diff flange. Bolt circle diameter and tube OD are the two critical specs.
2426-106 Tri/Quad Prong -- Bolt Circle & Tube Dimensions
Specs on the 2426-106 prong: 105MM bolt circle | 12MM bolt holes | 2.344" butt dia | 1.000"" face-to-weld | fits 2.500X0.083 tube. LEXUS. Metric bolt circle -- confirm in millimeters against your diff flange.
Nose bushing dia: 32MM -- centers the prong assembly in the flange bore. The butt diameter must match your tube OD -- mismatch here causes off-center welds and balance issues.
Key Features
- Bolt circle: 105MM -- metric, must match diff flange exactly
- Bolt hole dia: 12MM -- metric hole dimension
- Butt dia: 2.344" -- slides over driveshaft tube OD for weld
- Face-to-weld: 1.000"" -- prong end to weld point length
- Nose bushing dia: 32MM -- centers prong in flange bore
- Tube compatibility: 2.500X0.083 -- designed for this tube specification
- Note: LEXUS
Specifications
- SKU: 2426-106
- Brand: UDS
- Bolt Circle: 105MM
- Bolt Hole Dia: 12MM
- Butt Dia: 2.344"
- Face to Weld: 1.000""
- Nose Bushing Dia: 32MM
- Tube Fit: 2.500X0.083
- Notes: LEXUS
Additional information
| Bolt circle dia | 105MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 2.344 |
| Face to weld | 1.000" |
| Nose bushing dia | 32MM |
| Notes | LEXUS |
| Partn number | 2426-106 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 22.5mm |
