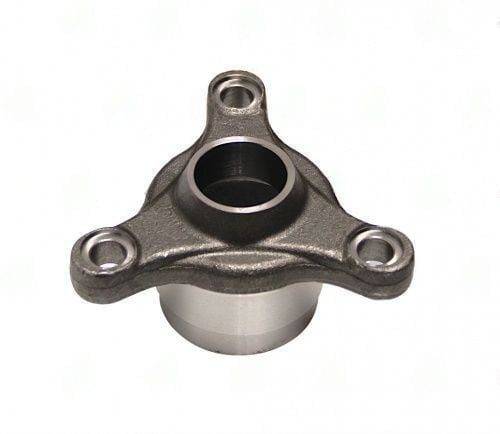

2426-105 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Bolt Hole Dia 12MM – Butt Dia 2.344
$78.33
4 in stock
13 People watching this product now!
Description
2426-105 tri/quad prong. 105MM bolt circle | 12MM bolt holes | 2.344″ butt dia | 1.625″” face-to-weld | fits 2.500X0.083 tube. Metric bolt circle weld-in driveshaft connector.
Full Description
A corroded or cracked prong flange is a common failure on high-mileage European vehicles. The 2426-105 is the direct replacement -- same bolt circle, same tube fit.
2426-105 Prong Flange Specifications
2426-105 prong connector -- 105MM bolt circle | 12MM bolt holes | 2.344" butt dia | 1.625"" face-to-weld | fits 2.500X0.083 tube. LEXUS LS400.
Bolt pattern verification is critical on metric platforms -- European diff flanges don't use the same bolt circles as domestic trucks. Measure yours before ordering.
Key Features
- Bolt circle: 105MM -- metric, must match diff flange exactly
- Bolt hole dia: 12MM -- metric hole dimension
- Butt dia: 2.344" -- slides over driveshaft tube OD for weld
- Face-to-weld: 1.625"" -- prong end to weld point length
- Nose bushing dia: 32MM -- centers prong in flange bore
- Tube compatibility: 2.500X0.083 -- designed for this tube specification
- Note: LEXUS LS400
Specifications
- SKU: 2426-105
- Brand: UDS
- Bolt Circle: 105MM
- Bolt Hole Dia: 12MM
- Butt Dia: 2.344"
- Face to Weld: 1.625""
- Nose Bushing Dia: 32MM
- Tube Fit: 2.500X0.083
- Notes: LEXUS LS400
Additional information
| Bolt circle dia | 105MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 2.344 |
| Face to weld | 1.625" |
| Nose bushing dia | 32MM |
| Notes | LEXUS LS400 |
| Partn number | 2426-105 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 18.5 mm |
