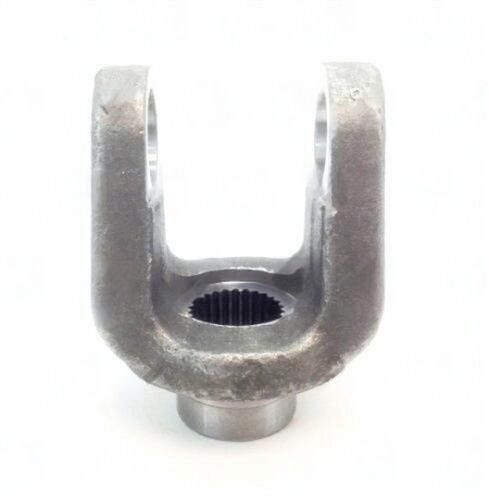

2304-261 – End Yoke – 2351 Series – 1.115″ Splines Dia – 24/26 Spline
$85.56
1 in stock
20
People watching this product now!
Description
End yoke 2304-261, 2351. Specs: 1.115 x 24/26 spline | 1.445″ hub dia | 3.312″ CJ-to-end | 1.300″ bore. USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB. Spline count and series must match.
Full Description
End yoke selection depends on series, spline count, shaft diameter, and retention style. The 2304-261 covers all four -- confirm yours match.
2304-261 End Yoke -- 2351 Series Spline & Fitment
Dimensions on the 2304-261 end yoke: 1.115 x 24/26 spline | 1.445" hub dia | 3.312" CJ-to-end | 1.300" bore. USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB. Inside snap ring retention -- requires internal circlip pliers for installation. Verify spline count and diameter against your axle or transfer case output shaft.
The hub diameter and CJ-to-end measurement determine clearance and working angle -- both matter on lifted vehicles.
Key Features
- Series: 2351 -- application-specific drivetrain
- Spline: 1.115 x 24/26 -- must match axle/T-case shaft exactly
- Hub dia: 1.445" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 3.312" -- affects driveshaft working length and angle
- Bore: 1.300" -- confirm against shaft OD
- Retention: ISR -- Inside snap ring retention -- requires internal circlip pliers for installation.
- Note: USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB
Specifications
- SKU: 2304-261
- Brand: UDS
- Series: 2351
- Spline Dia: 1.115
- Spline Count: 24/26
- Hub Dia: 1.445"
- CJ to End: 3.312"
- Through Hole: 1.300"
- Style: ISR
- Notes: USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB
Additional information
| Cj to end |
3.312 |
|---|---|
| Hub dia |
1.445 |
| Notes |
USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB |
| Partn number |
2304-261 |
| Series |
2351 |
| Splines count |
24/26 |
| Splines dia |
1.115 |
| Style |
ISR |
| Through hole |
1.300" |
