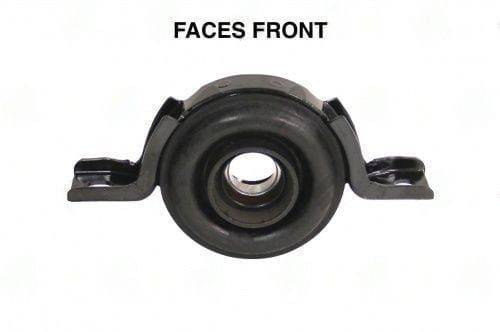

2280-20 – Center Support Bearing – Honda Application – 985″ ID – 500″ Center Bearing To Base
$95.79
10 in stock
16
People watching this product now!
Description
2280-20 Center Support Bearing — HONDA series, 985″ inner dia | 500″ center-to-base | 6.375″ mount spacing. Professional replacement. Verify inner dia and mount spacing.
Full Description
The 2280-20 center support bearing supports the midshaft section of a two-piece driveshaft, keeping it running concentric with the vehicle's drivetrain axis. When this bearing fails, the midshaft droops and the driveshaft angles change — you'll feel it as a vibration that gets progressively worse at highway speed. The 2280-20 center support bearing is the correct replacement for HONDA series applications, with the exact inner diameter and mount hole spacing your application requires.
2280-20 Center Support Bearing — HONDA Series Dimensions & Mount Specs
The 2280-20 center support bearing specs: 985" inner dia | 500" center-to-base | 6.375" mount spacing. CRV 2002 TO 2006. Application: HONDA series. Inner diameter must match the midshaft stub OD exactly — a loose fit allows the bearing to walk on the shaft, which causes vibration and accelerates wear on both the bearing race and the shaft surface. Mount hole center-to-center spacing must match your crossmember bracket.
When replacing a center support bearing on a two-piece shaft, replace the complete assembly — bearing race, rubber isolator, and bracket together. A new race in an old hardened rubber mount still vibrates. The rubber isolator is what actually absorbs the midshaft movement; without it the bearing transmits every frequency directly to the frame.
Key Features
- Application: HONDA series — verify your driveshaft series matches
- Bearing inner dia: 985" — must match midshaft stub OD exactly
- Center-to-base: 500" — height from shaft centerline to mounting surface
- Mount hole spacing: 6.375" — must match crossmember bracket exactly
- Complete assembly — bearing race, rubber isolator, and bracket as one unit
- Rubber isolator included — absorbs midshaft vibration, reduces NVH to frame
- Note: CRV 2002 TO 2006
Specifications
- SKU: 2280-20
- Brand: UDS
- Application: HONDA Series
- Bearing ID: 985"
- Center to Base: 500"
- Mount Hole Spacing: 6.375"
- Notes: CRV 2002 TO 2006
Additional information
| Application |
HONDA |
|---|---|
| Bearing id |
985 |
| Center bearing to base |
500 |
| Ctr to ctr of mount holes |
6.375 |
| Notes |
CRV 2002 TO 2006 |
| Partn number |
2280-20 |
