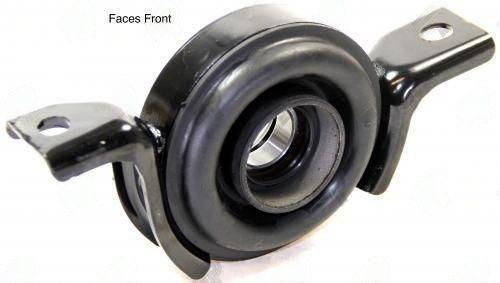

2280-30 – Center Support Bearing – Honda Application – 985″ ID – 1.500″ Center Bearing To Base
$90.77
10 in stock
11
People watching this product now!
Description
2280-30 center bearing — Honda CRV 2007-2011 AWD. Bearing ID: 0.985″. Center-to-base: 1.500″. Mount spacing: 6.625″.
Full Description
The 2280-30 is the center support bearing for the Honda CR-V AWD, model years 2007 through 2011 (third generation). Honda's real-time AWD system on the CR-V uses a propeller shaft from the front differential to the rear axle, supported at its midpoint by this center bearing.
At 1.500" center-to-base, this is the tallest bearing in the Honda/Acura 2280-series, placing the shaft centerline higher above the bracket surface than 2280-40 (0.750") or 2280-50 (0.347"). This reflects the CR-V's tunnel geometry where the driveshaft must clear other underbody components at the bearing location.
- Part Number: 2280-30
- Application: Honda CR-V AWD 2007-2011
- Bearing ID: 0.985"
- Center-to-Base: 1.500"
- Mount Hole Spacing: 6.625"
The third-generation CR-V (2007-2011) is a common application for this bearing. The 2007 model year marks the transition from the second to third generation. If your CR-V is 2002-2006, refer to 2280-20. If 1997-2001, refer to 2280-10. The three generations use distinct center bearing dimensions and are not interchangeable.
View all center support bearings.
Additional information
| Application | HONDA |
|---|---|
| Bearing id | 985 |
| Center bearing to base | 1.500 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | CRV 2007 TO 2011 |
| Partn number | 2280-30 |
