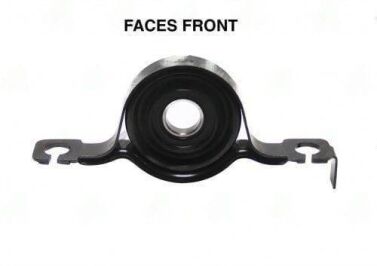

2180-20 – 20 – Center Support Bearing – Ford Edge & Lincoln Mkx Application – 1.181″ ID
$104.35
6 in stock
Description
2180-20 center support bearing for Ford Edge/Lincoln MKX — 1.181" ID, 1.250" center-to-base, 8.750" mount spacing.
Full Description
| SKU | 2180-20 |
|---|---|
| Application | Ford Edge & Lincoln MKX |
| Bearing ID | 1.181" |
| Center-to-Base | 1.250" |
| Ctr-to-Ctr Mount Holes | 8.750" |
- 1.250" center-to-base is taller than 2180-30 (0.511") -- these are not interchangeable despite same platform name
- 8.750" mount spread is the widest in the Ford Edge/MKX family -- measure your crossmember
- Bore ID 1.181" must match stub shaft OD exactly; a loose fit allows fretting corrosion between race and shaft
The 2180-20 is a Ford Edge and Lincoln MKX center support bearing with a 1.250" center-to-base height. The taller bracket positions the shaft CL higher relative to the crossmember than the 2180-30 or 2180-25 variants -- this is a deliberate geometry difference, not a manufacturing variation. Measure the center-to-base dimension on your original carrier before selecting a replacement in this family.
Additional information
| Application | Ford Edge & Lincoln MKX |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.250 |
| Ctr to ctr of mount holes | 8.750 |
| Partn number | 2180-20 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Center Support Bearing (323) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 0 Notes 620 Pickup (73-79) Partn number 1280-10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Juke 11-17 Bearing id 1.181 Center bearing to base 570 Ctr to ctr of mount holes 7.125 Notes Bolt heads opposite side of spacers Partn number 1280-15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.375 Ctr to ctr of mount holes 9.375 Notes Pickup 4X4 (79-88) Partn number 1280-20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan, Infiniti Bearing id 1.181 Center bearing to base 2.170 Ctr to ctr of mount holes 6.000 Notes Double metal rings surrounding the rubber and bearing. Comes with nut and washer/spacer Partn number 1280-30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.378 Center bearing to base 2.180 Ctr to ctr of mount holes 0 Notes Infiniti/ Nissan. Like 1280-30 but with larger bearing ID / Bracket not included. comes with new nut washer/spacer Partn number 1280-35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.500 Ctr to ctr of mount holes 6.000 Notes Nissan / Infiniti / Frontier 4X4 (98-03) Hardbody 4X4 (86-97) Pathfinder 4X4 (87-03) Xterra 4X4 (00-03) QX4 4X4 (00-03) Partn number 1280-40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Nissan Bearing id 1.181 Center bearing to base 2.125 Ctr to ctr of mount holes 5.875 Notes 300ZX (90-96) Partn number 1280-50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application Infiniti Bearing id 1.181 Center bearing to base 1.125 Ctr to ctr of mount holes 6.000 Notes Q45 (90-96) Partn number 1280-70 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application INFINITI Q50, Q60 Bearing id 1.181 Ctr to ctr of mount holes 6.000 Notes 3 mm spacer Partn number 1280-74 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Application INFINITI Q50, Q60, Q70, M37, M56 Bearing id 1.181 Center bearing to base 197 Ctr to ctr of mount holes 6.000 Notes 11 mm spacer Partn number 1280-75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
