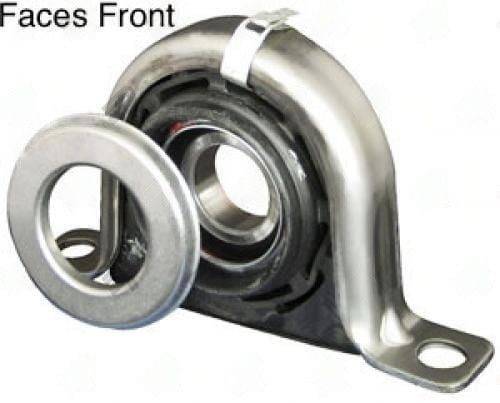

2180-10 – Center Support Bearing – 1210 Series – 1.260″ ID – 1.940″ Center Bearing To Base

Q: Why does a 1210-series application need a center support bearing when the 1210 is such a light-duty series? A: The 1210 is the smallest and weakest common U-joint series (1.062" cap diameter, very low torque rating). Two-piece driveshafts using 1210-series joints are found on compact vehicles and light vans. Even at these light-duty torque levels, a long two-piece shaft requires a center support bearing to suppress bending resonance -- without the center bearing, the shaft would develop a first-bending-mode vibration at road speeds.

Q: What is the bore ID and mount height for the 2180-10? A: Bore ID is 1.260" (32 mm); center-to-base height is 1.940". The 32 mm bore reflects the smaller stub shaft used with 1210-series driveshafts on compact vehicle platforms.

Q: Is upgrading from 1210 to a larger series practical for a compact vehicle? A: The upgrade path from 1210 to 1310 is feasible for the U-joints, but requires matching stub shaft and yoke components throughout the driveshaft. The center bearing bore must also match the upgraded stub shaft OD -- a 1310-series stub may use a different journal diameter than the 1210 application.
