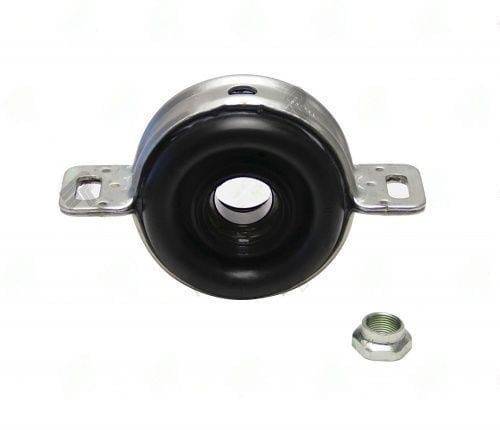

1380-65 – 65 – Center Support Bearing – Toyota Truck 16+ Application – 1.260″ ID
$72.20
4 in stock
Description
Toyota Truck 2016 and newer center support bearing with 1.260″ bore; rubber-isolated assembly for modern Toyota two-piece propshaft mid-span hanger position.
Full Description
1380-65 Specifications
Application: Toyota Truck 2016+ | Bore ID: 1.260" (32 mm) | Type: Rubber-isolated center support bearing
Toyota redesigned the Tacoma and Tundra propshaft center bearing bracket geometry beginning with the 2016 model year, using a more compact assembly that differs dimensionally from earlier Toyota applications. The 1380-65 addresses this generation-specific requirement with a 1.260" bore matching the 32 mm stub shaft journal used in 2016+ Toyota truck propshaft designs.
An installation note specific to modern Toyota trucks: the 2016+ Tacoma propshaft uses a three-bolt flange at the differential end and requires precise phasing of the front and rear driveshaft sections during assembly. Misphasing by one spline position at the slip yoke introduces a first-order imbalance. Toyota OEM references include part numbers in the 37230 and 37240 series depending on drivetrain variant -- 2WD applications do not use a two-piece shaft, so confirm AWD/4WD fitment before ordering.
Additional information
| Application | Toyota Truck 16+ |
|---|---|
| Bearing id | 1.260 |
| Center bearing to base | |
| Ctr to ctr of mount holes | 6.791 |
| Partn number | 1380-65 |
