211544X – Cv Link Yokes – 1310 Series – Bolt Hole Dia .312-24 – Notes LONG SOCKET TYPE
$88.06
4 in stock
16 People watching this product now!
Description
211544X Cv Link Yoke — 1310 series | 500 ball stud | 1.656″ CU-to-end. Genuine CV link yoke, verify ball stud dia.
Full Description
The 211544X CV link yoke is the connecting yoke in a constant velocity driveshaft link configuration for 1310 series applications. It bridges the ball stud centering mechanism and the u-joint cross, allowing the driveshaft to operate at angle without velocity variation. Ball stud diameter and bolt hole spec are both series-specific.
211544X Cv Link Yoke — 1310 Series Ball Stud & Dimensions
The 211544X CV link yoke specs: 1310 series | 500 ball stud | 1.656" CU-to-end. LONG SOCKET TYPE. Ball stud diameter must match the CV head socket exactly — a loose ball stud allows the CV head to walk at high angles. Verify ball stud diameter and series against your CV assembly before ordering the 211544X CV link yoke. CV link yokes are not interchangeable between series.Key Features
- Series: 1310
- Ball stud dia: 500
- Bolt hole dia: .312-24
- CU-to-end: 1.656"
- Note: LONG SOCKET TYPE
Specifications
- SKU: 211544X
- Brand: UDS
- Series: 1310
- Ball Stud Dia: 500
- Bolt Hole Dia: .312-24
- CU to End: 1.656"
- Notes: LONG SOCKET TYPE
Additional information
| Bolt hole dia | .312-24 |
|---|---|
| Notes | LONG SOCKET TYPE |
| Partn number | 211544X |
| Series | 1310 |
| Ball stud dia | 500 |
| Center u joint to end | 1.656 |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cv Link Yokes (5) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

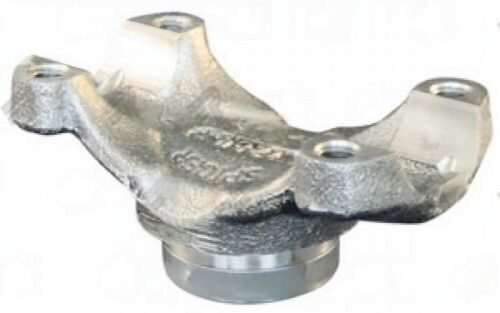

 | Bolt hole dia .312-24 Partn number 211179X Series 1330 Center u joint to end 1.562 Ball stud dia 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

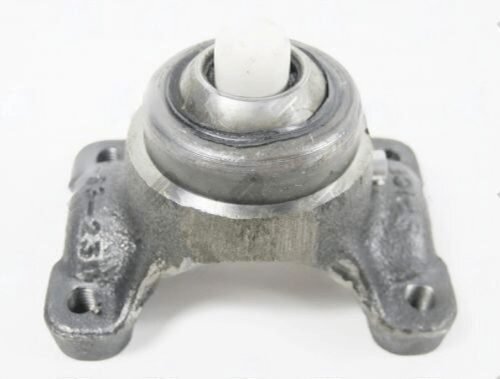

| | Bolt hole dia .250-28 Partn number 211342X Series 1210 Ball stud dia 500 Center u joint to end 1.531 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Partn number 211355X Series 1310 Bolt hole dia .312-24 Notes SHORT SOCKET TYPE Ball stud dia 500 Center u joint to end 1.531 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

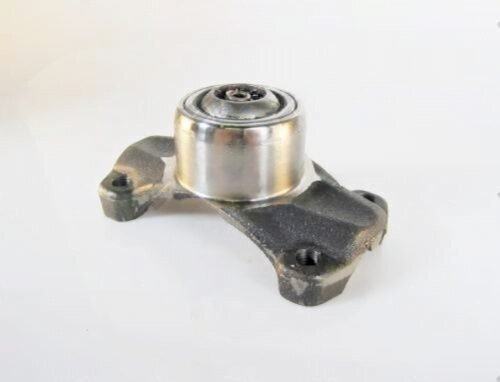

| | Bolt hole dia .312-24 Notes LONG SOCKER - SOCKET ID .1652 Partn number 211996X Series 1330 Center u joint to end 1.690 Ball stud dia 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

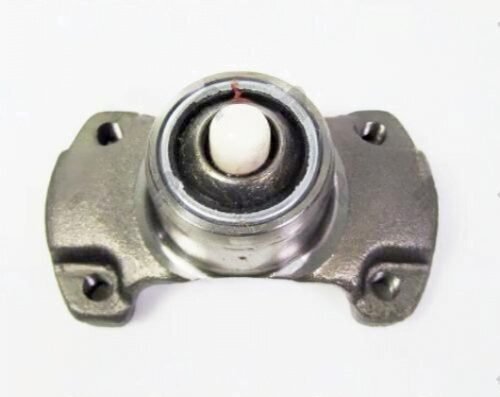

| | Bolt hole dia .312-24 Partn number 212019X Series 1350 Ball stud dia 500 Center u joint to end 1.757 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
