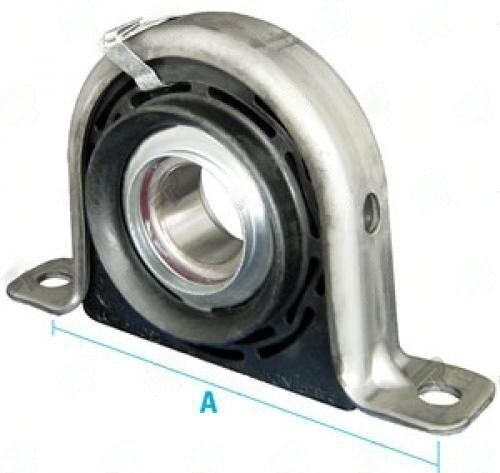

210866-1X – Center Support Bearing – 1350/1410 Series – 1.574″ ID – 2.250″ Center Bearing To Base

Both the 1350 and 1410 U-joint series use a 1.188-inch cap diameter, which means stub shaft diameters within these two series are dimensionally compatible at the center support bearing. The 210866-1X carries a 1.574-inch inner bore and 2.250-inch center-to-base height that serves both series -- the series designation on a CSB describes the rated torque capacity of the surrounding hardware, not a dimensional incompatibility at the bore.

• SKU: 210866-1X
• Compatible Series: 1350, 1410
• Inner Bore Diameter: 1.574 inches
• Center-to-Base Height: 2.250 inches
• Part Type: Center Support Bearing with rubber isolator

The 2.250-inch height positions the midshaft at the designed driveshaft angle for applications using this unit. If your repair involves a vehicle that originally had a bearing with a different center-to-base measurement, substituting the 210866-1X will shift the driveshaft angularity and alter U-joint operating angles on both ends of the midshaft -- enough to cause vibration or premature joint wear even after a new install.

Confirm your stub shaft OD with calipers before pressing. The 1.574-inch bore is nominal; actual clearance tolerances are tight, and a stub shaft that runs oversize from corrosion or prior damage will gall the new bearing bore during installation.

See the complete center support bearing lineup for all available heights and bore sizes.
