210084-2X Center Bearing 1.771 X 1.06 X 7.638 CB4527194
$32.77
10 in stock
Description

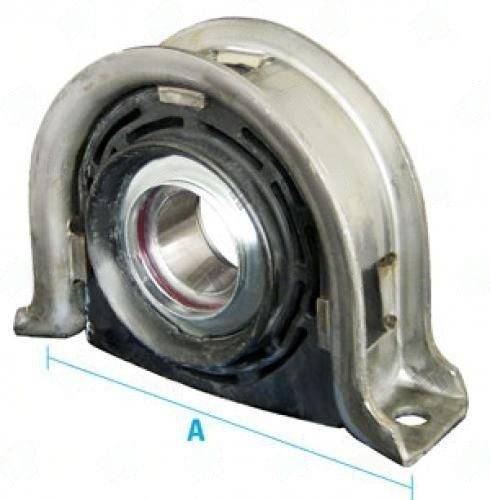

210084-2X center support bearing, 1.771 inch inner diameter, 7.638 inch bracket mount spacing, cross-reference CB4527194.
Full Description
The dimension that catches most rebuilders off guard on the 210084-2X is the bracket hole spacing -- 7.638 inches is longer than the more common Ford and GM center support bearing patterns. Before ordering this unit, measure your existing bracket from center hole to center hole. A bearing with the correct 1.771-inch bore but wrong bracket spacing will force you to re-drill the chassis, which is an avoidable complication.
| SKU | 210084-2X |
|---|---|
| Inner Diameter | 1.771 inches |
| Bracket Mount Spacing | 7.638 inches (center-to-center) |
| Cross-Reference | CB4527194 |
The 210084-2X cross-references as CB4527194. The 1.771-inch bore is functionally close to the 1.772-inch 1480-series bore -- but "close" is not interchangeable. Center support bearings with undersized bores will drag on the stub shaft, overheat, and fail prematurely. Oversized bores allow the bearing to walk along the stub under load, creating a secondary vibration source separate from rubber isolator fatigue.
When pressing the new bearing into its bracket, support the outer housing evenly. Uneven press force cocks the bearing in the bracket, which puts the rubber isolator in a preloaded state from day one. Torque the bracket hardware to spec and recheck alignment with the vehicle weight on the suspension before declaring the job complete.
Browse all center support bearings by dimension and application.
Additional information
| Application | 1550,1610 |
|---|---|
| Bearing id | 1.771 |
| Center bearing to base | 2.690 |
| Ctr to ctr of mount holes | 7.620 |
| Partn number | 210084-2X |
