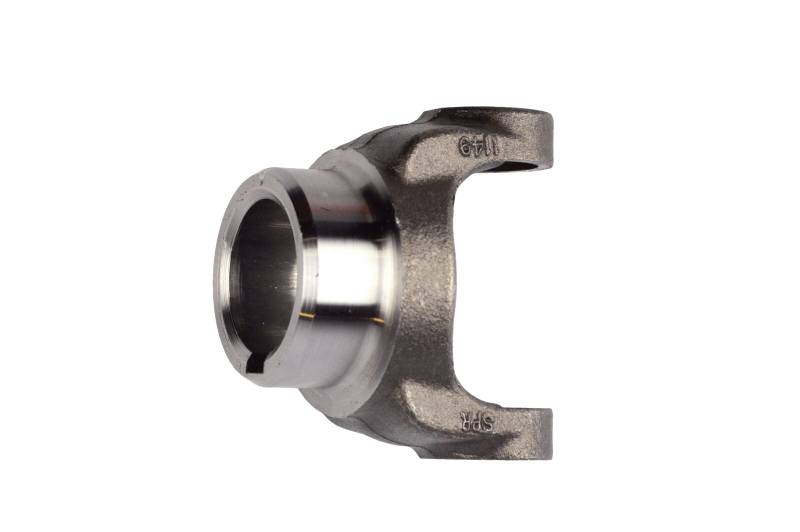

2-4-1233 End Yoke – Round Bore 1310 Series, 1.500 Bore KEYWAY: 0.375 , Hub Diameter: 2.125
$19.95
50 in stock
11
People watching this product now!
Description
End yoke 2-4-1233, 1310. Specs: KEYWAY- 0.375 x ROUND BORE spline | 2.125″ hub dia | 2.562″ CJ-to-end | 1.62 bore. KEYWAY LOCATION AT 12. Spline count and series must match.
Full Description
A sloppy end yoke causes driveline clunk and accelerated u-joint wear. The 2-4-1233 end yoke is the direct replacement -- correct spline count, correct series.
2-4-1233 End Yoke -- 1310 Series Spline & Fitment
The 1310 series is the standard for light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 2-4-1233 end yoke specs: KEYWAY- 0.375 x ROUND BORE spline | 2.125" hub dia | 2.562" CJ-to-end | 1.62 bore. Note: KEYWAY LOCATION AT 12.
Spline count is the most common source of ordering errors on end yokes. Count yours on the shaft -- don't guess by series alone.
Key Features
- Series: 1310 -- light-duty trucks -- F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: KEYWAY- 0.375 x ROUND BORE -- must match axle/T-case shaft exactly
- Hub dia: 2.125" -- outer dimension, affects clearance in yoke bore
- CJ-to-end: 2.562" -- affects driveshaft working length and angle
- Bore: 1.62 -- confirm against shaft OD
- Retention: RB -- verify against your yoke configuration
- Note: KEYWAY LOCATION AT 12
Specifications
- SKU: 2-4-1233
- Brand: UDS
- Series: 1310
- Spline Dia: KEYWAY- 0.375
- Spline Count: ROUND BORE
- Hub Dia: 2.125"
- CJ to End: 2.562"
- Through Hole: 1.62
- Style: RB
- Notes: KEYWAY LOCATION AT 12
Additional information
| Cj to end |
2.562 |
|---|---|
| Hub dia |
2.125 |
| Notes |
KEYWAY LOCATION AT 12 |
| Partn number |
2-4-1233 |
| Series |
1310 |
| Splines count |
ROUND BORE |
| Splines dia |
KEYWAY- 0.375 |
| Style |
RB |
| Through hole |
1.62 |
