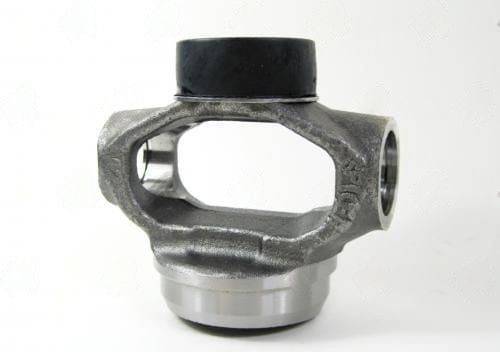

2-28-3067 – Ball Stud Yokes – 1330 Series – Ball Stud Length Dia 0.500X0.594 – Notes DUST COVER RUBBER
$38.26
3 in stock
10 People watching this product now!
Description
2-28-3067 ball stud yoke, 1330 series. fits 2.500X0.083 tube | 2.344″ butt dia | 0.500X0.594 ball stud | 1.375″ center-to-weld. Weld-in with CV ball stud.
Full Description
The 2-28-3067 ball stud yoke is the weld-in tube connector for CV-type driveshafts that use a ball centering mechanism. It combines the weld yoke with an integrated ball stud for the CV head seating.
2-28-3067 Ball Stud Yoke -- 1330 Series Specs
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. Specs: fits 2.500X0.083 tube | 2.344" butt dia | 0.500X0.594 ball stud | 1.375" center-to-weld. Note: DUST COVER RUBBER. Ball stud diameter has to match your CV head socket exactly.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Tube fit: 2.500X0.083 -- butt diameter machined to this tube OD
- Butt dia: 2.344" -- slides over or butts to tube end
- Ball stud: 0.500X0.594 -- seats CV head centering socket
- Center-to-weld: 1.375" -- affects shaft length calculation
- Note: DUST COVER RUBBER
Specifications
- SKU: 2-28-3067
- Brand: SPICER
- Series: 1330
- Tube Fit: 2.500X0.083
- Butt Dia: 2.344"
- Ball Stud: 0.500X0.594
- Center to Weld: 1.375"
- Notes: DUST COVER RUBBER
Additional information
| Ball stud length dia | 0.500X0.594 |
|---|---|
| Notes | DUST COVER RUBBER |
| Partn number | 2-28-3067 |
| Series | 1330 |
| Brand | SPICER |
| Tube dia wall | 2.500X0.083 |
| Butt dia | 2.344 |
| Center u j to weld | 1.375 |
