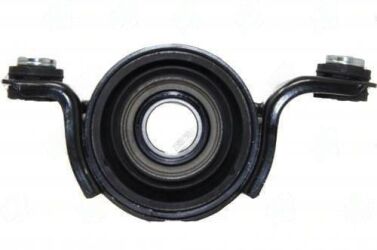

1680-13 – 13 – Center Support Bearing – Mitsubishi Endeavor Application – 1.181″ ID
$78.38
10 in stock
Description
1680-13 front center support bearing for Mitsubishi Endeavor 3-piece shaft — 1.181" ID, flush, 6.693" mount spacing.
Full Description
| SKU | 1680-13 |
|---|---|
| Application | Mitsubishi Endeavor (front CB, 3-piece shaft) |
| Bearing ID | 1.181" |
| Center-to-Base | 0 (flush) |
| Ctr-to-Ctr Mount Holes | 6.693" |
| Position | Front carrier |
- 6.693" spread distinguishes the Endeavor front position from the rear (1680-14 at 7.402")
- Front and rear carriers on the Endeavor have different mount spreads -- the front is 0.709" narrower
- Bore ID 1.181" -- standard for this Mitsubishi family
- Pair with 1680-14 for complete Endeavor 3-piece shaft service
The 1680-13 is the front center support bearing on the Mitsubishi Endeavor 3-piece driveshaft. The front carrier (6.693" spread) and rear carrier (1680-14, 7.402" spread) are not interchangeable. Replace both during a driveshaft rebuild to avoid a repeat repair.
Additional information
| Application | Mitsubishi Endeavor |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Notes | Front CB on 3pc shaft |
| Partn number | 1680-13 |
| Ctr to ctr of mount holes | 6.693 |
