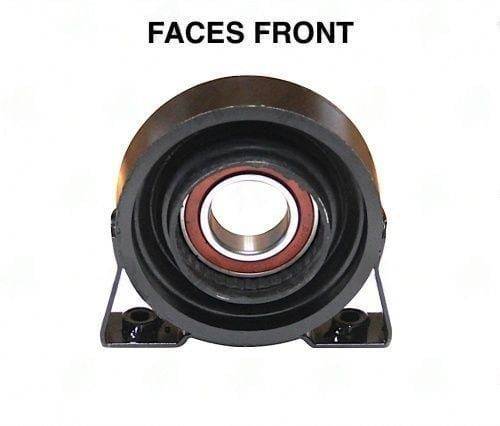

1480-16 – Center Support Bearing – Land Rover Lr2 Application – 1.181″ ID – 2.000″ Center Bearing To Base
$96.12
Out of stock
Description
1480-16 center support bearing for Land Rover LR2 — 1.181" ID, 2.000" center-to-base, 3.250" mount spacing, M8-1.25 threads.
Full Description
- SKU
- 1480-16
- Application
- Land Rover LR2
- Bearing ID
- 1.181"
- Center-to-Base
- 2.000"
- Ctr-to-Ctr Mount Holes
- 3.250"
- Thread Type
- M8-1.25
The Land Rover LR2 uses metric mount hardware throughout its driveline -- the 1480-16 requires M8-1.25 bolts at the crossmember, not SAE fasteners. Using SAE bolts in metric-threaded holes strips the thread engagement on the first installation. The 3.250" mount spread is the narrowest Volvo/Land Rover carrier in the 1480 series, and the 2.000" center-to-base is among the tallest. Both dimensions must match your LR2 crossmember. The 1.181" bore is standard for this center support bearing family.
Additional information
| Application | Land Rover LR2 |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.000 |
| Ctr to ctr of mount holes | 3.250 |
| Notes | threaded M8-1.25 |
| Partn number | 1480-16 |
