Brand:

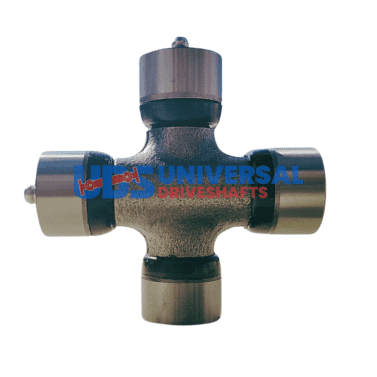

1350TST UDS 1350 Offset Universal Joint Super flex High…
$17.70
+50 in stock
19
People watching this product now!
Description
1350TST — 1350 Offset series, 1.188″ cap, 3.625″ width. Premium greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The 1350tst is a 1350 Offset series -- 3/4-ton trucks (F-250, Ram 2500, Dana 44/60, performance 4x4) outside snap ring retention universal joint measuring 1.188" cap dia | 3.625" width. The 1350tst is greaseable with zerk fitting. Every 1350tst is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
1350TST -- 1350 Offset Series Cap & Width Specifications
The 1350tst specs: 1.188" cap dia | 3.625" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (3.625" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove.
Verify the yoke bore diameter against the 1350tst cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The 1350tst requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for 1350tst
Before installing the 1350tst, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 1350tst before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 1350tst should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 1350 Offset series -- 3/4-ton trucks (F-250, Ram 2500, Dana 44/60, performance 4x4)
- Cap dia: 1.188" -- must match yoke bore exactly
- Width: 3.625" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Brand: UDS
Specifications
- SKU: 1350TST
- Part Number: 1350TST
- Brand: UDS
- Series: 1350 Offset
- Cap Dia 1: 1.188"
- Width 1: 3.625"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
Additional information
| Series |
1350 Offset |
|---|---|
| Style |
OSR |
| Cap dia 1 |
1.188 |
| Width 1 |
3.625 |
| Brand |
UDS |
| Lube |
Y |
| Partn number |
1350TST |
