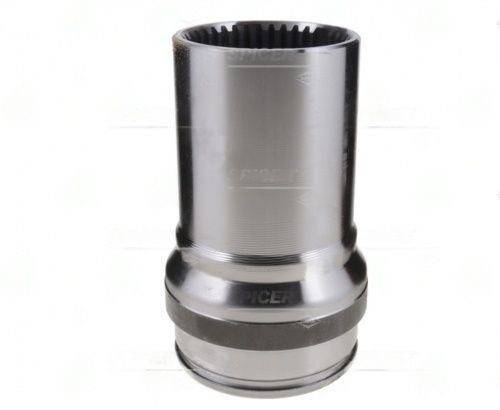

250-55-31X – 55 – 31X – Splined Sleeves & Slip Assemblies – SPL170 – SPL250 Series – 3.858″ Splines Dia
$181.15
Available on backorder
13 People watching this product now!
Description
250-55-31X steel splined slip assembly for SPL170/SPL250 series. Spline dia 3.858″, 36/38 splines, butt dia 4.744″, end-to-weld 6.909″. Fits 4.960×0.118 tube. Also: 55-31X.
Full Description
SPL170/SPL250 Splined Slip Assembly -- 250-55-31X
The SPL170 and SPL250 series are heavy-duty truck and bus driveline components rated for high-torque applications. This steel slip assembly carries a 3.858" spline diameter with a high-count 36/38-tooth spline interface, distributing torque across a large contact area.
| Specification | Value |
|---|---|
| Series | SPL170 / SPL250 |
| Material | Steel |
| Spline Dia | 3.858" |
| Splines | 36/38 |
| Butt Dia | 4.744" |
| End to Weld | 6.909" |
| Tube Fit | 4.960 x 0.118" |
The 0.118" wall on the mating tube is a heavy specification -- this assembly is designed for demanding duty cycles such as refuse vehicles, motor coaches, and heavy trucks. Confirm the 4.960" tube OD and 0.118" wall against your shaft before ordering. Also referenced as 55-31X.
See all heavy-duty slip assemblies and slip yokes.
Additional information
| Butt dia | 4.744 |
|---|---|
| End to weld | 6.909 |
| Fits to tube | 4.960×0.118 |
| Material | STEEL |
| Partn number | 250-55-31X |
| Series | SPL170 – SPL250 |
| Splines count | 36/38 |
| Splines dia | 3.858 |
