UJ65190S UDS UJ65190 Scania Universal Joint 65 x 190 UJ6…
$148.38
+50 in stock
10
People watching this product now!
Description

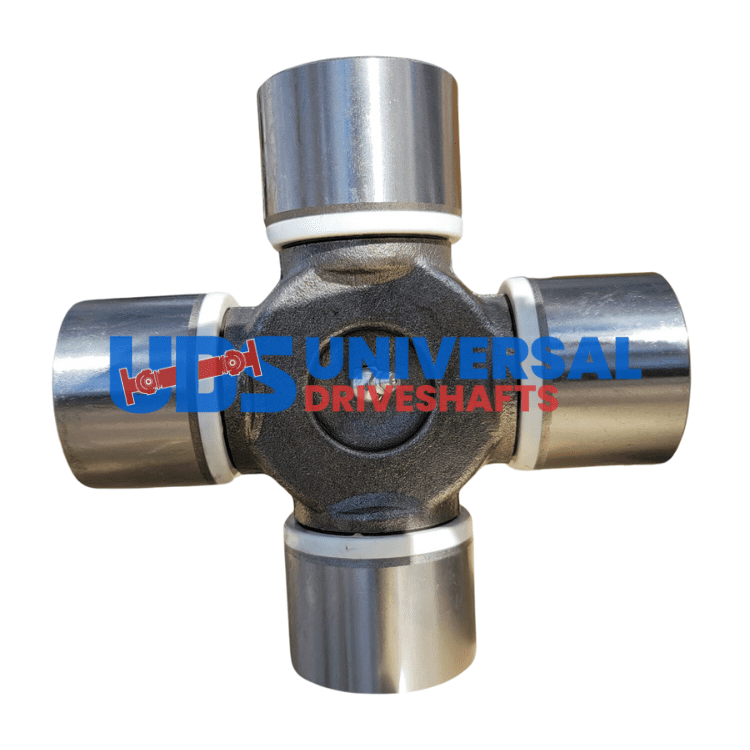

UJ65190S — P600 series, 2.559″ cap, 7.480″ width. Proven greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The uj65190s is a P600 series outside snap ring retention universal joint measuring 2.559" cap dia | 7.480" width. The uj65190s is greaseable with zerk fitting. Every uj65190s is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
UJ65190S -- P600 Series Cap & Width Specifications
The uj65190s specs: 2.559" cap dia | 7.480" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (7.480" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. Scania 65x190.
Verify the yoke bore diameter against the uj65190s cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The uj65190s requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for uj65190s
Before installing the uj65190s, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the uj65190s before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The uj65190s should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: P600 series
- Cap dia: 2.559" -- must match yoke bore exactly
- Width: 7.480" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Brand: UDS
- Note: Scania 65x190
Specifications
- SKU: UJ65190SU
- Part Number: UJ65190S
- Brand: UDS
- Series: P600
- Cap Dia 1: 2.559"
- Width 1: 7.480"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
- Notes: Scania 65x190
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
2.559 |
| Width 1 |
7.480 |
| Lube |
Y |
| Style |
OSR |
| Partn number |
UJ65190S |
| Series |
P600 |
| Notes |
Scania 65×190 |
