SPL55X UDS Universal Joint 1480 Series Heavy Duty U-Join…
$24.68
+50 in stock
19
People watching this product now!
Description

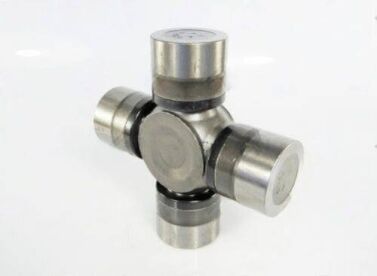

SPL55X — 1480 series, 1.375″ cap, 4.188″ width. Genuine sealed universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The spl55x is a 1480 series -- heavy commercial Class 3-4 and Dana heavy applications outside snap ring retention universal joint measuring 1.375" cap dia | 4.188" width. The spl55x is sealed, no grease fitting required. Every spl55x is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
SPL55X -- 1480 Series Cap & Width Specifications
The spl55x specs: 1.375" cap dia | 4.188" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (4.188" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. SEALED.
Verify the yoke bore diameter against the spl55x cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The spl55x is factory-sealed -- no maintenance interval, no grease fitting. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for spl55x
Before installing the spl55x, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the spl55x before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The spl55x should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 1480 series -- heavy commercial Class 3-4 and Dana heavy applications
- Cap dia: 1.375" -- must match yoke bore exactly
- Width: 4.188" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Sealed -- factory pre-lubed, no maintenance required
- Part number: SPL55XU
- Brand: UDS
- Note: SEALED
Specifications
- SKU: SPL55XU
- Part Number: SPL55XU
- Brand: UDS
- Series: 1480
- Cap Dia 1: 1.375"
- Width 1: 4.188"
- Snap Ring Style: OSR
- Lube: No -- sealed
- Notes: SEALED
