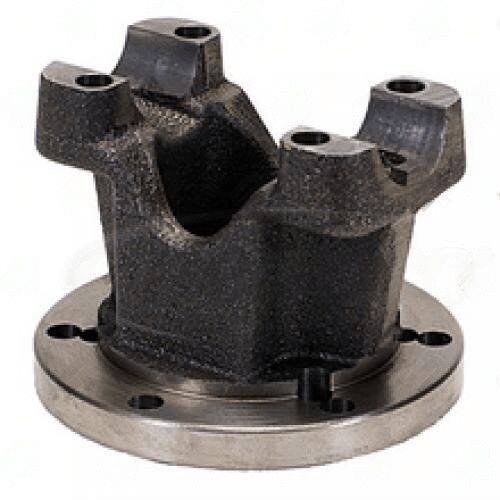

N2-83-206 – Cv Flange Yokes – 1310 Series – Bolt Circle Dia 3.386″ – Pilot Dia 3.935
$180.60
2 in stock
16
People watching this product now!
Description
N2-83-206 Cv Flange Yoke — 1310 series, 3.386 bolt circle | 3.935 pilot | 2.91″ CL-to-face. Proven CV-specific, ball stud bore required.
Full Description
The N2-83-206 CV flange yoke is the flange-side connection point for constant velocity driveshaft assemblies in 1310 series applications. Unlike a standard flange yoke, it accommodates the ball stud centering mechanism that keeps the CV joint operating at equal velocity through its full angle range. Bolt circle, pilot diameter, and ball stud diameter are all specific to one application.
N2-83-206 Cv Flange Yoke — 1310 Series Ball Stud & Bolt Pattern
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The N2-83-206 CV flange yoke specs: 3.386 bolt circle | 3.935 pilot | 2.91" CL-to-face. 100mm 6 Bolt Hole CV End Yoke Flange. Can use 3102-393CV flange. Replacement for 3152-1001, 3152-1002. The ball stud bore is what makes this a CV-specific part — it's not interchangeable with a standard flange yoke. Ball stud diameter must match your CV head socket exactly. Bolt circle and pilot match your diff or axle flange.
Confirm your driveshaft uses a CV design before ordering a N2-83-206 CV flange yoke. CV flange yokes aren't interchangeable with standard flange yokes — the geometry is different. If you're converting from a standard u-joint front shaft to a CV setup, the flange yoke is the first part to spec out.
Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Bolt circle: 3.386 — must match diff/axle flange bolt pattern
- Pilot dia: 3.935 — centers yoke on companion flange
- CL-to-face: 2.91" — CV head position from flange face
- Class: LD — duty rating
- CV-specific design — accommodates ball stud centering, not compatible with standard yoke
- Note: 100mm 6 Bolt Hole CV End Yoke Flange. Can use 3102-393CV flange. Replacement for 3152-1001, 3152-1002
Specifications
- SKU: N2-83-206
- Brand: NEAPCO
- Series: 1310
- Bolt Circle: 3.386
- Pilot Dia: 3.935
- CL to Face: 2.91"
- Class: LD
- Notes: 100mm 6 Bolt Hole CV End Yoke Flange. Can use 3102-393CV flange. Replacement for 3152-1001, 3152-1002
Additional information
| Bolt circle dia |
3.386 |
|---|---|
| Bolt hole dia |
0.32 |
| Brand |
NEAPCO |
| C l to face |
2.91 |
| Class |
LD |
| Lube |
No |
| Notes |
100mm 6 Bolt Hole CV End Yoke Flange. Can use 3102-393CV flange. Replacement for 3152-1001, 3152-1002 |
| Partn number |
N2-83-206 |
| Pilot dia |
3.935 |
| Pilot type |
OD |
| Series |
1310 |
