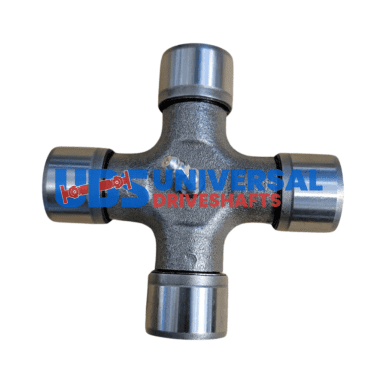

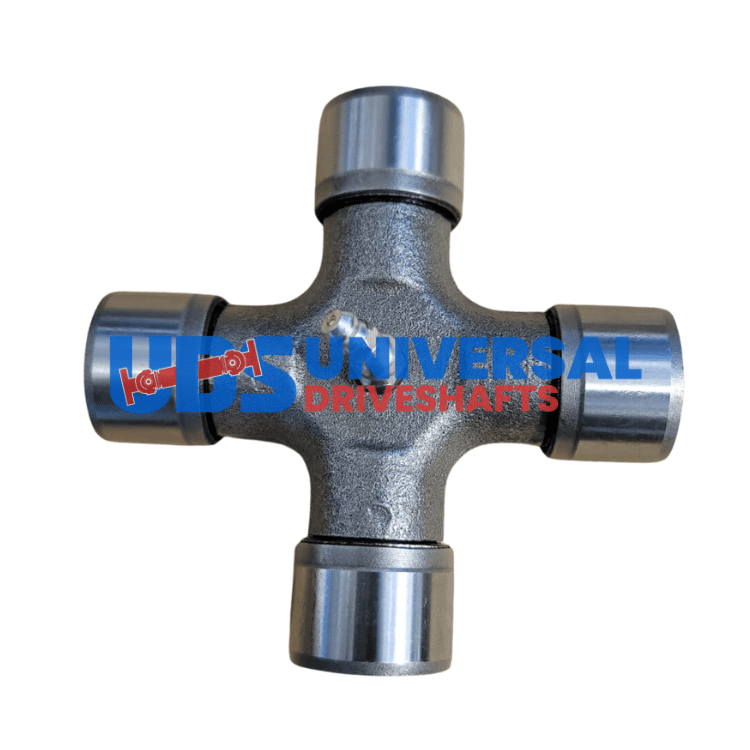

GUA13 UDS Universal Joint – Fits Multiple Series 30.2×10…
$13.05
50 in stock
18
People watching this product now!
Description
GUA13 — MULTIPLE series, 1.188″ cap, 4.188″ width. Genuine greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The gua13 is a MULTIPLE series outside snap ring retention universal joint measuring 1.188" cap dia | 4.188" width. The gua13 is greaseable with zerk fitting. Every gua13 is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
GUA13 -- MULTIPLE Series Cap & Width Specifications
The gua13 specs: 1.188" cap dia | 4.188" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (4.188" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. GRANIT: 397601723 RENAULT: 42535253, 5000295989, ETC CAT: 1179887 NEW HOLLAND / CASE / STEYR: 87530319, 86505534, 85807037, ETC JCB: 914/03402.
Verify the yoke bore diameter against the gua13 cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The gua13 requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for gua13
Before installing the gua13, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the gua13 before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The gua13 should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: MULTIPLE series
- Cap dia: 1.188" -- must match yoke bore exactly
- Width: 4.188" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Part number: GUA-13
- Brand: UDS
- Note: GRANIT: 397601723 RENAULT: 42535253, 5000295989, ETC CAT: 1179887 NEW HOLLAND / CASE / STEYR: 87530319, 86505534, 85807037, ETC JCB: 914/03402
Specifications
- SKU: GUA13
- Part Number: GUA-13
- Brand: UDS
- Series: MULTIPLE
- Cap Dia 1: 1.188"
- Width 1: 4.188"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
- Notes: GRANIT: 397601723 RENAULT: 42535253, 5000295989, ETC CAT: 1179887 NEW HOLLAND / CASE / STEYR: 87530319, 86505534, 85807037, ETC JCB: 914/03402
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
1.188 |
| Width 1 |
4.188 |
| Lube |
Y |
| Style |
OSR |
| Partn number |
GUA-13 |
| Series |
MULTIPLE |
| Notes |
GRANIT: 397601723 RENAULT: 42535253, 5000295989, ETC CAT: 1179887 NEW HOLLAND / CASE / STEYR: 87530319, 86505534, 85807037, ETC JCB: 914/03402 |
