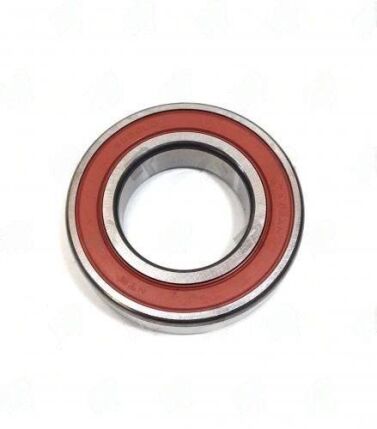

6006LLU – Center Support Bearing – Numerous Application – 1.181″ ID
$31.45
5 in stock
Description
6006LLU double-sealed deep-groove ball bearing: 30x55x13mm, 1.181″ bore. Multi-application bearing insert for center support bearing housings requiring 6006 series bearings.
Full Description
Q: What is the 6006LLU and how does it differ from a complete center support bearing assembly? A: The 6006LLU is an ISO 6006-type deep-groove ball bearing -- 30 mm ID, 55 mm OD, 13 mm width, with double rubber lip seals (LLU = double contact seal). It is the inner rolling element only, supplied without a housing, rubber isolator, or mounting bracket. It is used to replace just the bearing inside an existing center support bearing housing when the housing and rubber isolator are still serviceable.
Q: What are the equivalent part numbers for the 6006LLU? A: FAG 6006-2RSR, SKF 6006-2RS1, NSK 6006DDU, Timken 6006-2RS, and NTN 6006LLU are all equivalent ISO 6006 double-sealed bearings. Any of these from a reputable bearing manufacturer can substitute for the 6006LLU insert.
Q: How do I press the 6006LLU into a housing without damaging the seals? A: Use a bearing press with a 55 mm OD driver tube that contacts only the outer race. Never press on the inner race when installing into a housing -- this transfers press force through the ball elements and brinells the raceways. Ensure the housing bore is clean and dimensionally correct (55.000--55.010 mm) before pressing.
Q: What are the equivalent part numbers for the 6006LLU? A: FAG 6006-2RSR, SKF 6006-2RS1, NSK 6006DDU, Timken 6006-2RS, and NTN 6006LLU are all equivalent ISO 6006 double-sealed bearings. Any of these from a reputable bearing manufacturer can substitute for the 6006LLU insert.
Q: How do I press the 6006LLU into a housing without damaging the seals? A: Use a bearing press with a 55 mm OD driver tube that contacts only the outer race. Never press on the inner race when installing into a housing -- this transfers press force through the ball elements and brinells the raceways. Ensure the housing bore is clean and dimensionally correct (55.000--55.010 mm) before pressing.
Additional information
| Application | Numerous |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | |
| Ctr to ctr of mount holes | |
| Notes | Single Row Deep Groove Radial Ball Bearing, 30 mm Bore ID, 55 mm OD, 13 mm Width, Double Sealed |
| Partn number | 6006LLU |
