Brand:

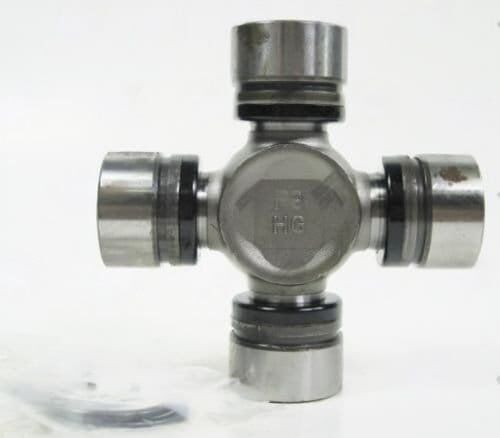

5-789X UDS UDS – 5-789XU Universal Joint
$11.52
10
People watching this product now!
Description
5-789X — 7260 series, 1.078″ cap, 2.125″ width. Complete sealed universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The 5-789x is a 7260 series -- GM light trucks and vans (Dana 7260 cross) inside snap ring retention universal joint measuring 1.078" cap dia | 2.125" width. The 5-789x is sealed, no grease fitting required. Every 5-789x is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
5-789X -- 7260 Series Cap & Width Specifications
The 5-789x specs: 1.078" cap dia | 2.125" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (2.125" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. SEALED.
Verify the yoke bore diameter against the 5-789x cap size before installing. The snap ring style (inside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The 5-789x is factory-sealed -- no maintenance interval, no grease fitting. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for 5-789x
Before installing the 5-789x, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 5-789x before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 5-789x should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 7260 series -- GM light trucks and vans (Dana 7260 cross)
- Cap dia: 1.078" -- must match yoke bore exactly
- Width: 2.125" -- controls yoke ear span
- Style: inside snap ring retention -- verify yoke groove type before ordering
- Sealed -- factory pre-lubed, no maintenance required
- Part number: 5-789XU
- Brand: UDS
- Note: SEALED
Specifications
- SKU: 5-789XU
- Part Number: 5-789XU
- Brand: UDS
- Series: 7260
- Cap Dia 1: 1.078"
- Width 1: 2.125"
- Snap Ring Style: ISR
- Lube: No -- sealed
- Notes: SEALED
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
1.078 |
| Lube |
N |
| Notes |
SEALED |
| Partn number |
5-789XU |
| Series |
7260 |
| Style |
ISR |
| Width 1 |
2.125 |
