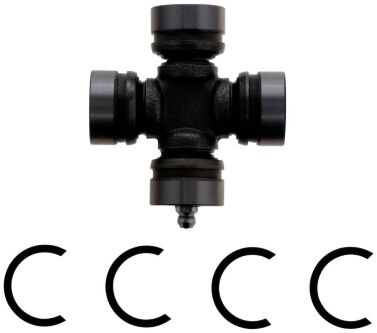

5-3223X UDS Universal Joint Inside Snap Ring 1-0013 , 23…
$21.74
50 in stock
19
People watching this product now!
Description
5-3223X — 2351 series, 1.024″ cap, 1.848″ width. Premium greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The 5-3223x is a 2351 series inside snap ring retention universal joint measuring 1.024" cap dia | 1.848" width. The 5-3223x is greaseable with zerk fitting. Every 5-3223x is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
5-3223X -- 2351 Series Cap & Width Specifications
The 5-3223x specs: 1.024" cap dia | 1.848" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (1.848" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. TOYOTA APPLICATION.
Verify the yoke bore diameter against the 5-3223x cap size before installing. The snap ring style (inside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The 5-3223x requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for 5-3223x
Before installing the 5-3223x, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 5-3223x before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 5-3223x should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 2351 series
- Cap dia: 1.024" -- must match yoke bore exactly
- Width: 1.848" -- controls yoke ear span
- Style: inside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Part number: 5-3223XU
- Brand: UDS
- Note: TOYOTA APPLICATION
Specifications
- SKU: 5-3223XU
- Part Number: 5-3223XU
- Brand: UDS
- Series: 2351
- Cap Dia 1: 1.024"
- Width 1: 1.848"
- Snap Ring Style: ISR
- Lube: Yes -- grease fitting
- Notes: TOYOTA APPLICATION
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
1.024 |
| Lube |
Y |
| Notes |
TOYOTA APPLICATION |
| Partn number |
5-3223XU |
| Series |
2351 |
| Style |
ISR |
| Width 1 |
1.848 |
