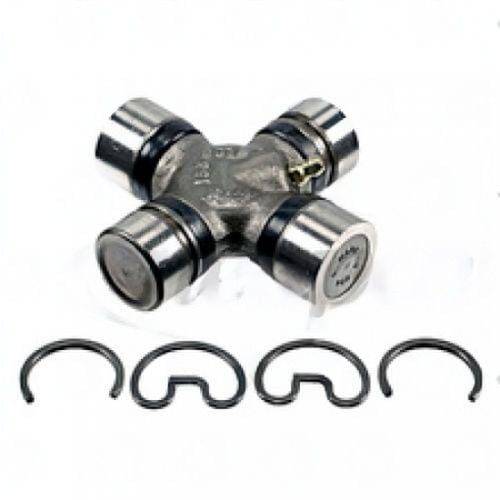

5-115X UDS UDS – 5-115XU Universal Joint
$38.06
15 People watching this product now!
Description
5-115X — 1510 series, 1.563″ cap, 4.565″ width. Complete greaseable universal joint. Verify cap dia and snap ring style before ordering.
Full Description
The 5-115x is a 1510 series outside snap ring retention universal joint measuring 1.563" cap dia | 4.565" width. The 5-115x is greaseable with zerk fitting. Every 5-115x is verified for cap diameter, bearing width, and snap ring groove dimensions before it ships from Universal Driveshafts.
5-115X -- 1510 Series Cap & Width Specifications
The 5-115x specs: 1.563" cap dia | 4.565" width. Cap diameter determines which yoke bore it fits -- the cap must seat fully into the yoke without play. Bearing width (4.565" across the body) controls the span between yoke ears. A cross that is too wide won't fit; too narrow and the snap rings don't seat in the groove. IVECO / SAAB.
Verify the yoke bore diameter against the 5-115x cap size before installing. The snap ring style (outside snap ring retention) must match the yoke groove pattern -- OSR yokes have an external groove; ISR yokes have an internal groove. The 5-115x requires a grease gun at installation and at regular service intervals. Correct installation torque on the strap kit or U-bolt is critical -- undertorqued straps allow the cap to walk under load.
Installation Notes for 5-115x
Before installing the 5-115x, clean the yoke bores of any rust, burrs, or old bearing material. The bearing cups must drop in by hand -- never drive them in with a hammer directly on the cup. Use a proper cross-and-bearing installation tool or a press. Driving a cup in at an angle cocks the needle bearings and destroys the 5-115x before it ever sees load.
After installation, verify full rotation without binding. A binding cross indicates a cup is cocked or seated too deep. The 5-115x should articulate freely through the full operating angle of your driveshaft before the vehicle is lowered off the lift.
Key Features
- Series: 1510 series
- Cap dia: 1.563" -- must match yoke bore exactly
- Width: 4.565" -- controls yoke ear span
- Style: outside snap ring retention -- verify yoke groove type before ordering
- Greaseable -- zerk fitting included, service at regular intervals
- Part number: 5-115XU
- Brand: UDS
- Note: IVECO / SAAB
Specifications
- SKU: 5-115XU
- Part Number: 5-115XU
- Brand: UDS
- Series: 1510
- Cap Dia 1: 1.563"
- Width 1: 4.565"
- Snap Ring Style: OSR
- Lube: Yes -- grease fitting
- Notes: IVECO / SAAB
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.563 |
| Lube | Y |
| Notes | IVECO / SAAB |
| Partn number | 5-115XU |
| Series | 1510 |
| Style | OSR |
| Width 1 | 4.565 |
