4870-20

SKU: 4870-20

$15.38

29 in stock

12 People watching this product now!

Description

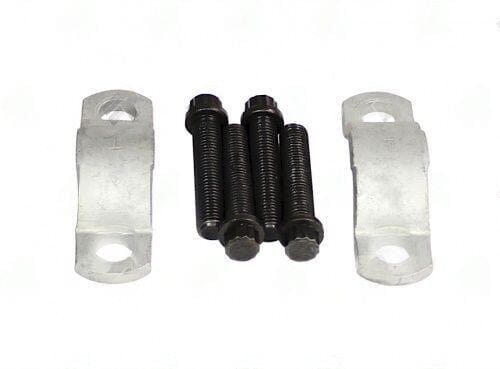

The 4870-20 Strap Kit is compatible with AAM 1485/1555 series pinion yokes. It features a cap diameter of 1.375 inches and a center-to-center (C to C) distance of 1.925 inches. The kit includes bolts that are 1.500 inches long, with a thread diameter of .312-24.

For proper installation, a bolt torque of 25-30 ft-lb is recommended. This product is manufactured by PTI.

Additional information

Bolt length	1.5
Bolt torque	25-30 ft-lb
Center to center	1.925
Fits cap dia	1.375
Partn number	4870-20
Thread dia	.312-24
Series	1485 , 1555

More from the same Category

1-2021

$15.38

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.13
Fits cap dia	1.375
Partn number	1-2021
Thread dia	.375-24
Series	1480 , 1550

2-70-48X

$8.96

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.8
Fits cap dia	1.125
Partn number	2-70-48X
Thread dia	.312-24
Series	3R

1-2022

$12.82

Bolt length	594
Bolt torque	15 ft-lb
Center to center	1.594
Fits cap dia	1.062
Partn number	1-2022
Thread dia	.250-28
Series	1310 , 1330

1-2020

$13.56

Bolt length	1.5
Bolt torque	32 ft-lb
Center to center	1.656
Fits cap dia	1.188
Partn number	1-2020
Thread dia	.312-24
Series	1350 , 1410

250-70-18X

$26.90

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3.444
Fits cap dia	2.362
Partn number	250-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL250

2 70 68X.1 1400x

2-70-68X

$6.40

Bolt length	0.62
Bolt torque	15 ft-lb
Center to center	1.5
Fits cap dia	1.078
Partn number	2-70-68X
Thread dia	.250-28
Series	7260

1-2018

$16.65

Partn number	1-2018
Fits cap dia	1.125
Center to center	1.531
Thread size	.250-28
Series	7290

1-1946

$17.94

Bolt length	1
Bolt torque	125 ft-lb
Center to center	2.812
Fits cap dia	1.938
Partn number	1-1946
Thread dia	.500-20
Series	1710 , 1760 , 1810

1-1945

$15.38

Bolt length	0.75
Bolt torque	52 ft-lb
Center to center	2.5
Fits cap dia	1.875
Partn number	1-1945
Thread dia	.375-24
Series	1610

170-70-18X

$28.18

Bolt length	984
Bolt torque	115 ft-lb
Center to center	3.228
Fits cap dia	2.165
Partn number	170-70-18X
Thread dia	M12 X 1.25 6G
Series	SPL170

1-1930

$29.21

Bolt length	1.281
Bolt torque	32 ft-lb
Center to center	1.938
Fits cap dia	1.375
Partn number	1-1930
Thread dia	.312-24
Series	1485 , 1550

2670-10

$8.96

Bolt length	625
Bolt torque	15 ft-lb
Center to center	1.5
Fits cap dia	1.078
Partn number	2670-10
Thread dia	.250-28
Series	7260

1-2019

$12.66

Partn number	1-2019
Thread dia	.312-24
Series	1350 , 1410

image 3ytxqXZFA transformed

3-70-28X Universal Joint Strap Fits 1350 / 1410 U-Joints

$4.81

Bolt length	0.75
Bolt torque	32 ft-lb
Center to center	1.806
Fits cap dia	1.188
Partn number	3-70-28X
Thread dia	.312-24
Series	1350 , 1410
