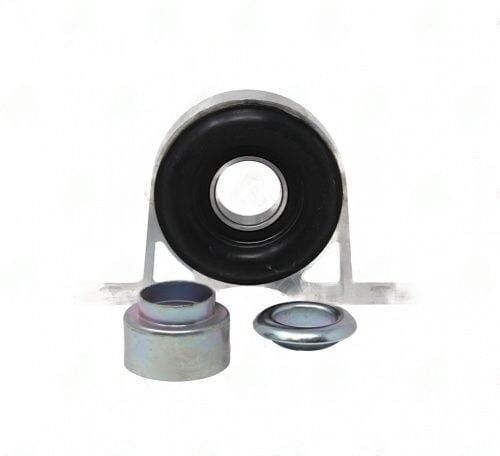

4180-60 – Center Support Bearing – Ford Application – 1.574″ ID – 2.748″ Center Bearing To Base
$67.30
10 in stock
Description
4180-60 center support bearing for Ford, 1.574 inch bore, 2.748 inch center-to-base height.
Full Description
Among the Ford 4180-series center support bearings, the 4180-60 sits at 2.748 inches center-to-base -- the tallest in this family. The difference between the 4180-60 and the 4180-50 is 0.224 inches, which sounds minor but represents a measurable change in driveshaft working angle. Ford engineers specified these different heights for different chassis and body configurations, so using the taller 4180-60 on an application that originally used the shorter 4180-50 will shift both U-joint operating angles on the adjacent midshaft ends.
| SKU | 4180-60 |
|---|---|
| Application | Ford |
| Inner Bore | 1.574 inches |
| Center-to-Base Height | 2.748 inches |
| Series Comparison | Taller than 4180-50 (2.524 in) and 4180-55 (1.500 in) |
The most reliable way to confirm you need the 4180-60 specifically is to measure the original bearing's center-to-base height with the bearing in place before removal, or immediately after removal before the driveshaft sags. Once the bearing is out and the shaft has moved, reconstructing the original height from a photograph or from memory introduces guesswork.
With a 1.574-inch bore, the 4180-60 fits standard 1350/1410-series Ford stub shafts. Verify the stub shaft surface is clean and undamaged before pressing. Browse the complete center support bearing catalog for all Ford heights.
Additional information
| Application | FORD |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.748 |
| Ctr to ctr of mount holes | 6.620 |
| Notes | Aluminum flat bottom bracket. Used on F250 & F350 applications, Heavy Duty Version |
| Partn number | 4180-60 |
