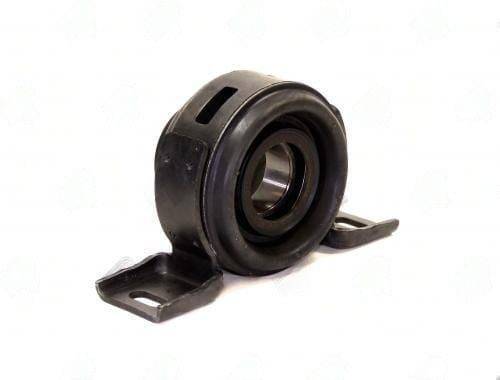

4180-10 – Center Support Bearing – Dodge Application – 1.574″ ID – 2.337″ Center Bearing To Base
$95.46
10 in stock
Description
4180-10 center support bearing for Dodge, 1.574 inch bore, 2.337 inch center-to-base height.
Full Description
The Dodge 4180-series center support bearings span three different center-to-base heights -- 2.337 inches (4180-10), 3.250 inches (4180-15 and 4180-16) -- and all three carry the same 1.574-inch bore. This means bore measurement alone is not sufficient to confirm the correct unit. The 4180-10 at 2.337 inches is approximately 0.913 inches shorter than the 4180-16 at 3.250 inches, which is a significant geometric difference that directly affects driveshaft working angle once installed.
| SKU | 4180-10 |
|---|---|
| Application | Dodge |
| Inner Bore | 1.574 inches |
| Center-to-Base Height | 2.337 inches |
| Dodge 4180 Heights Available | 2.337 in (this unit), 3.250 in (4180-15/16) |
To verify the 4180-10 is correct: with the existing bearing installed and the vehicle at ride height, measure from the center of the bearing housing to the bracket mounting surface on the frame. If that measurement is approximately 2.337 inches, the 4180-10 is your unit. If it reads close to 3.250 inches, you need the 4180-15 or 4180-16. Installing the wrong-height bearing on a Dodge Ram two-piece shaft setup will change both U-joint operating angles on the midshaft ends and introduce vibration that is difficult to diagnose without knowing the height substitution was made.
See the full center support bearing catalog for all Dodge variants.
Additional information
| Application | DODGE |
|---|---|
| Bearing id | 1.574 |
| Center bearing to base | 2.337 |
| Ctr to ctr of mount holes | 6.625 |
| Notes | Dodge/ 11 x 27 mount slots / Supersedes 40041712 |
| Partn number | 4180-10 |
