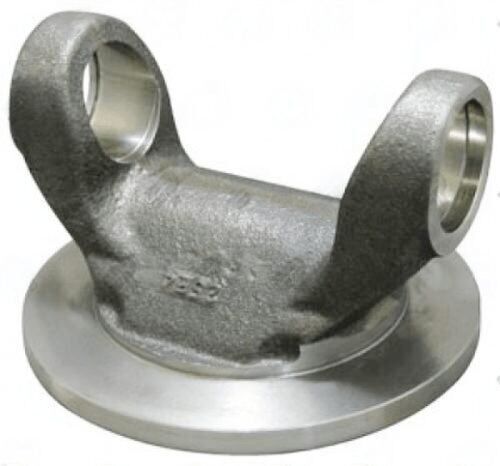

4102-1200 – Flange Yokes – 1410 Series – Bolt Hole Dia 0.000″ – Pilot Dia 2.950, F
$107.90
0 in stock
16 People watching this product now!
Description
4102-1200 Flange Yoke — 1410 series, 0 bolt circle | 2.950 pilot | N/Ax0.000 bolt holes | 2.165″ CJ-to-flat. Proven bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 4102-1200 flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 4102-1200 flange yoke is the correct replacement.
4102-1200 Flange Yoke — 1410 Series Specifications & Fitment
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 4102-1200 flange yoke specs: 0 bolt circle | 2.950 pilot | N/Ax0.000 bolt holes | 2.165" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 4102-1200 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1410 — built for HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Bolt circle: 0 — must match axle/diff flange hole pattern exactly
- Pilot dia: 2.950 — centers yoke on companion flange, no play allowed
- N/A bolt holes at 0.000 — verify hole count and size
- CJ-to-flat: 2.165" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
Specifications
- SKU: 4102-1200
- Brand: UDS
- Series: 1410
- Bolt Circle: 0
- Pilot Dia: 2.950
- Bolt Holes: N/A
- Bolt Hole Dia: 0.000
- CJ to Flat: 2.165"
Additional information
| Bolt circle dia | 0 |
|---|---|
| Bolt hole dia | 0.000 |
| Cj to flat | 2.165 |
| Partn number | 4102-1200 |
| Pilot dia | 2.950 ,F |
| Series | 1410 |
| Bolt Holes | N/A |
