4102-120KV – Flange Yokes – 1410 Series – Bolt Circle Dia 3.950″ – Bolt Hole Dia 0.430
$102.09
0 in stock
17
People watching this product now!
Description
4102-120KV UDS 1410 flange yoke. 4-hole, 3.950″ bolt circle, 4.745, OD” pilot, 2.875″ CJ-to-face. Verify bolt circle and pilot before ordering.
Full Description

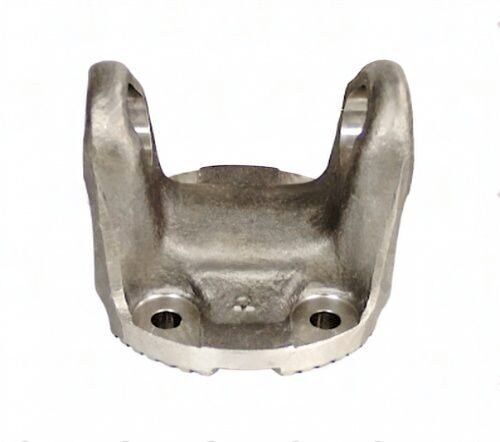

4102-120KV UDS 1410 Flange Yoke
The 4102-120KV is a 1410 series flange yoke manufactured by UDS. It bolts to a companion flange on the transmission, transfer case, or differential output using a 4-bolt pattern on a 3.950-inch bolt circle. The 4.745, OD-inch pilot diameter registers the yoke concentrically against the companion flange to minimize runout.
The 4 bolt holes are 0.430-inch diameter on the 3.950-inch bolt circle. The center-U-joint-to-flange-face dimension is 2.875 inches. This 1410 series yoke accepts a 1410 U-joint in the yoke ears — the ear bore is machined specifically for the 1410 cap diameter. The 1410 series ranks above 1350 in torque capacity, with a 1.188-inch cap diameter, suited for 1-ton and heavy-duty pickup trucks.
Specifications
- Part Number: 4102-120KV
- Brand: UDS
- Series: 1410
- Bolt circle dia: 3.950
- Bolt hole dia: 0.430
- Cj to flat: 2.875
- Pilot dia: 4.745, OD
- Bolt Holes: 4
Fitment & Installation Notes
Before ordering the 4102-120KV, measure the bolt circle diameter and pilot diameter on the companion flange. The bolt circle (3.950") and pilot (4.745, OD") must match exactly. A 1410 U-joint is required — do not install a different-series joint in these ears.
Browse the complete Flange Yokes catalog including circular and rectangular bolt patterns across 1410 and adjacent series.
Additional information
| Bolt circle dia | 3.950 |
|---|---|
| Bolt hole dia | 0.430 |
| Cj to flat | 2.875 |
| Partn number | 4102-120KV |
| Pilot dia | 4.745, OD |
| Series | 1410 |
| Bolt Holes | 4 |
