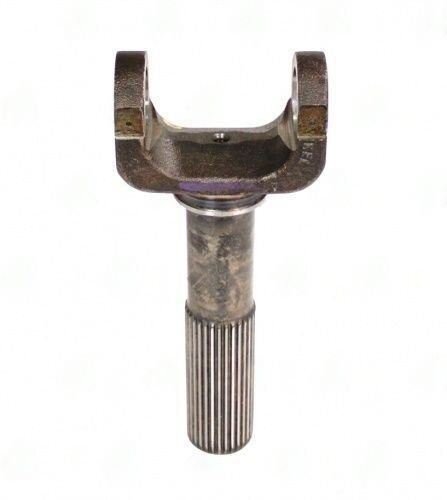

40137666 – Yoke Shafts – 1410 Series – 1.378″ Splines Dia – 32 Spline
$96.77
2 in stock
10
People watching this product now!
Description
40137666 Yoke Shaft — 1410 series, 1.378″ x 32 spline | 9.055″ CL-to-end. Complete integrated shaft-and-yoke assembly.
Full Description
The 40137666 yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 1410 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.
40137666 Yoke Shaft — 1410 Series Spline & CL Specs
The 1410 series covers HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles. The 40137666 yoke shaft specs: 1.378" x 32 spline | 9.055" CL-to-end. external splined shaft transmission yoke. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.
Verify both ends of the 40137666 yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.
Key Features
- Series: 1410 — HD trucks — F-250/350/450, Ram 2500/3500, Dana 60/70 axles
- Spline: 1.378" x 32 — must match output shaft exactly
- CL-to-end: 9.055" — u-joint position from output shaft face
- Integrated design — splined shaft and u-joint yoke in one piece
- Brand: UDS
- Note: external splined shaft transmission yoke
Specifications
- SKU: 40137666
- Brand: UDS
- Series: 1410
- Spline Dia: 1.378"
- Spline Count: 32
- CL to End: 9.055"
- Notes: external splined shaft transmission yoke
Additional information
| Boot cap part |
40123472 |
|---|---|
| C l to end |
9.055 |
| Notes |
external splined shaft transmission yoke |
| Partn number |
40137666 |
| Series |
1410 |
| Splines count |
32 |
| Splines dia |
1.378 |
