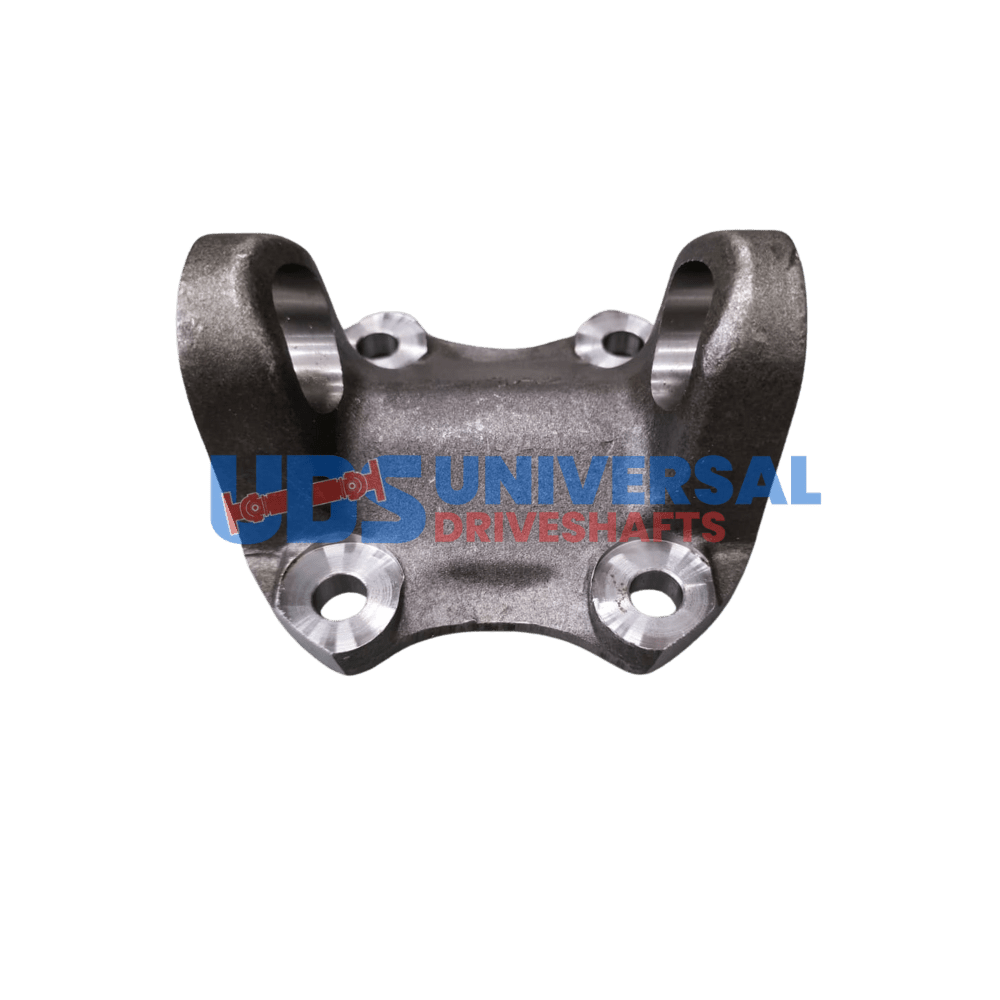

4-2-679 Flange Yoke 1550 Series , Pilot: 3.750 , Bolt Circle Dia: 4.750 , Holes: 4x 0.500 Centerline to Face: 1.500″ Rec Bolt Pattern

4-2-679 -- 1550 Series Flange Yoke, 4-Bolt 4.750" BC, 3.750" Pilot

The 4-2-679 shares its bolt pattern with the 1410 series 3-2-559 -- both have four 0.500-inch holes on a 4.750-inch bolt circle with a 3.750-inch pilot -- but the series are different. The 4-2-679 runs 1550 series U-joints (1.375-inch cap, 4.964-inch width); the 3-2-559 runs 1410 (1.188-inch cap, 4.188-inch width). The companion flanges on the shaft are machined to a specific series; bolting a 1550 yoke onto a 1410-series companion flange introduces the correct bolt pattern but the wrong U-joint geometry at the ears, which will not mate correctly with the driveshaft U-joints.

CJ-to-flat: 1.500 inches. Pilot diameter: 3.750 inches (verify male or female against your companion flange -- pilot style not listed in the data sheet). Use with a 1550 series U-joint exclusively.

• Part Number: 4-2-679
• Series: 1550 (1.375" cap x 4.964" width)
• Bolt Holes: 4 x 0.500"
• Bolt Circle: 4.750"
• Pilot: 3.750"
• CJ to Flat: 1.500"

1410 and 1550 Flange Yokes with same bolt pattern in stock -- verify series before ordering.
