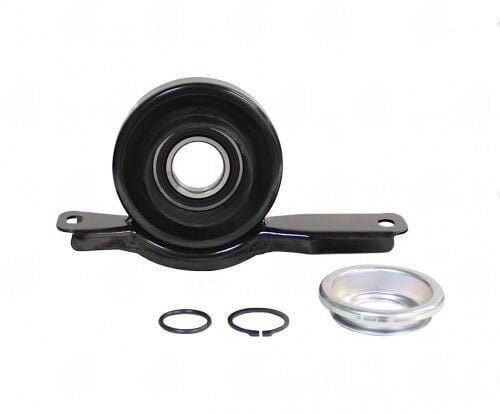

3680-80 – Center Support Bearing – Gm Application – 1.181″ ID – 1.375″ Center Bearing To Base
$156.55
10 in stock
Description
GM application center support bearing with 1.181″ bore and 1.375″ center-to-base height; rubber-isolated ball bearing assembly for GM compact two-piece driveshaft hanger positions.
Full Description
| SKU | 3680-80 |
|---|---|
| Application | GM (various -- confirm model year and body style) |
| Bore ID | 1.181" (30 mm) |
| Center to Base | 1.375" |
| Type | Rubber-isolated center support bearing |
- 1.181" (30 mm) bore -- used on GM compact and mid-size platforms with smaller stub shaft journals
- 1.375" center-to-base height -- confirm against the removed bearing; adjacent GM variants use 1.500" and 2.000" heights
- Bonded rubber isolator: GM-application compound tuned for GMT-platform driveshaft frequencies
- GM OEM cross-references in the 22800834 series; confirm by VIN and model year
Tip: GM compact truck and SUV two-piece driveshafts use a stub shaft journal that often corrodes at the center bearing seat in vehicles from salt-belt states. After removing the old bearing, clean the journal with a fine grit flap disc -- remove only the corrosion scale, not base metal. The journal should be smooth and within 0.003" of the 30.000 mm nominal diameter before pressing the new 3680-80.
Additional information
| Application | GM |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 1.375 |
| Ctr to ctr of mount holes | 7.500 |
| Notes | Pontiac G8 |
| Partn number | 3680-80 |
