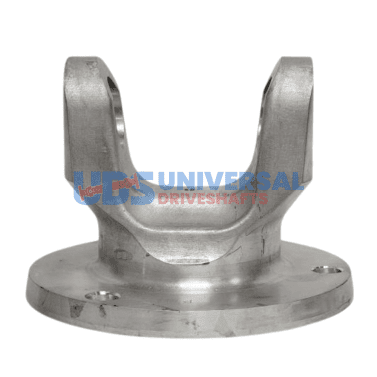

3502-0165 UDS Flange Yoke 1350 Series – Aluminum 6061-T6 Tri Flange
$136.89
Out of stock
16
People watching this product now!
Description
3502-0165U Flange Yoke — 1350 series, 4.528 bolt circle | 0.630 pilot | 3×0.480 bolt holes. Professional bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 3502-0165U flange yoke is the direct bolt-on connection between your 1350 series driveshaft and the differential or axle housing flange. Bolt circle and pilot diameter are the two specs that determine whether this part fits — everything else is secondary. The 3502-0165U flange yoke is machined to one specific set of dimensions, and those dimensions have to match your axle flange exactly.
3502-0165U Flange Yoke — 1350 Series Specifications & Fitment
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The 3502-0165U flange yoke specs: 4.528 bolt circle | 0.630 pilot | 3x0.480 bolt holes. Aluminum 6061-T6 Tri Flange, 115mm (4.528) bolt circle, Hole to hole 3.921", 16mm nose hole, 12mm bolt holes. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3502-0165U flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1350 — built for 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Bolt circle: 4.528 — must match axle/diff flange hole pattern exactly
- Pilot dia: 0.630 — centers yoke on companion flange, no play allowed
- 3 bolt holes at 0.480 — verify hole count and size
- Brand: UDS — direct-fit replacement
- Note: Aluminum 6061-T6 Tri Flange, 115mm (4.528) bolt circle, Hole to hole 3.921", 16mm nose hole, 12mm bolt holes
Specifications
- SKU: 3502-0165U
- Brand: UDS
- Series: 1350
- Bolt Circle: 4.528
- Pilot Dia: 0.630
- Bolt Holes: 3
- Bolt Hole Dia: 0.480
- Notes: Aluminum 6061-T6 Tri Flange, 115mm (4.528) bolt circle, Hole to hole 3.921", 16mm nose hole, 12mm bolt holes
Additional information
| Partn number |
3502-0165 |
|---|---|
| Pilot dia |
0.630 |
| Bolt circle dia |
4.528 |
| Bolt hole dia |
0.480 |
| Series |
1350 |
| C l to face |
3.000 |
| Brand |
UDS |
| Notes |
Aluminum 6061-T6 Tri Flange, 115mm (4.528) bolt circle, Hole to hole 3.921", 16mm nose hole, 12mm bolt holes |
| Bolt Holes |
3 |
