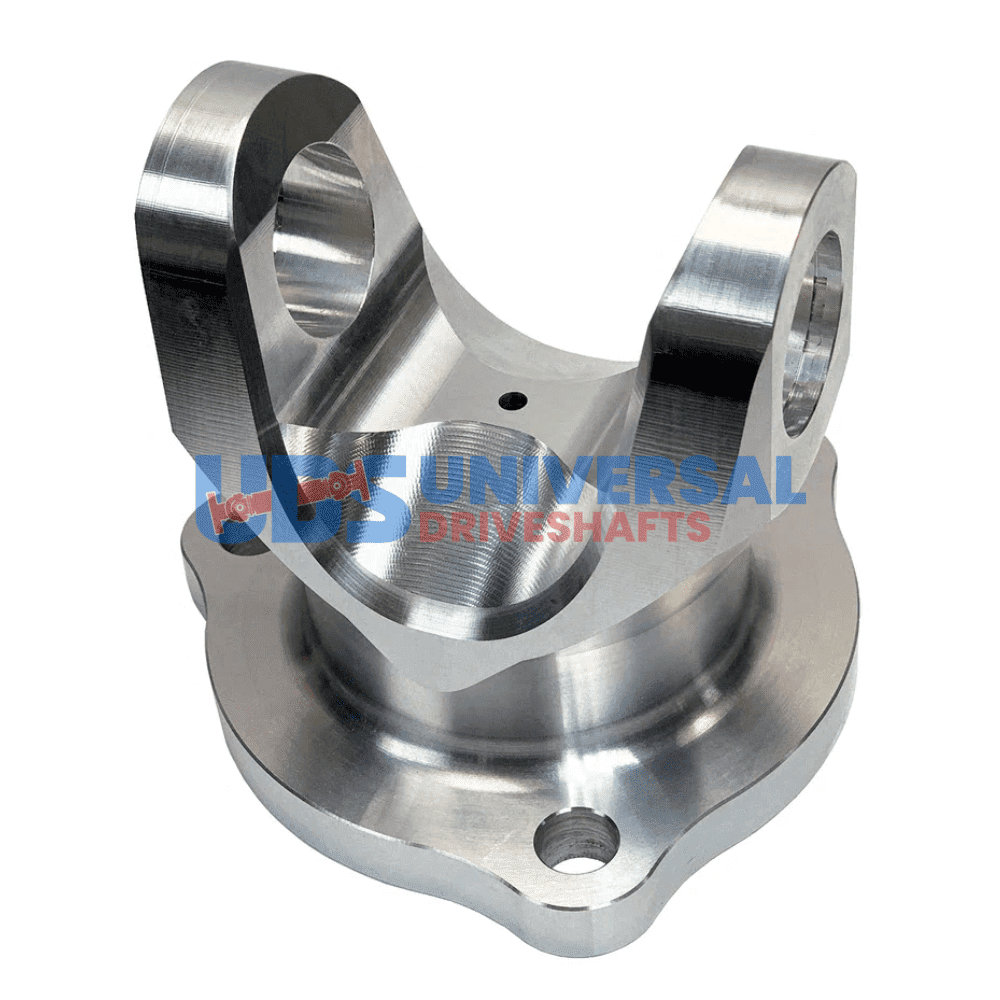

UDS T35-GMFD-01K Flange Yoke – ideal upgrade for modified performance vehicles – 6L80, 6L90, 8L90, 10L80; TR6060, TR3160 Manual; ’05-’06 Pontiac GTO (Diff. Side) and More
$244.26
1 in stock
Description
Series 1350 flange yoke T35-GMFD-01KU from UDS — precision pilot diameter and bolt circle for accurate driveshaft assembly and balance.
Full Description
The T35-GMFD-01KU is a Series 1350 flange yoke purpose-built for demanding applications in precision driveshaft connections. With a 0.631" F" pilot diameter and 4.330" bolt circle, it mates directly to companion flanges meeting Series 1350 bolt patterns. Manufactured to OEM interchange dimensions, T35-GMFD-01KU eliminates the guesswork of sourcing a correct-fit companion yoke for Series 1350 shaft assemblies.
Technical Specifications -- T35-GMFD-01KU
| Specification | Value |
|---|---|
| Part Number | T35-GMFD-01KU |
| Brand | UDS |
| Series | 1350 |
| Type | Flange Yoke |
| Pilot Diameter | 0.631" F" |
| Bolt Circle Diameter | 4.330" |
| Bolt Hole Diameter | 0.500" |
| Notes | Aluminum Tri Flange, used on 110mm tri-prongs, 16mm ID hole (14mm reducer bushing included). 0.45" thick base |
Series Compatibility
The T35-GMFD-01KU is compatible with all Series 1350 companion flanges and yoke bores meeting the published dimensional standard. The 0.631" F" pilot diameter is a precision ground fit that centers the yoke concentrically on the mating component. Four bolt holes on a 4.330" bolt circle accept standard Series 1350 fasteners. Verify that the mating component -- whether a differential pinion flange, transfer case output, or transmission tailshaft -- specifies Series 1350 to ensure correct geometry.
Installation & Torque Guidance
Install the T35-GMFD-01KU with new fasteners torqued to the vehicle or equipment manufacturer's flange bolt specification. Clean the mating pilot bore and flange face before assembly to ensure full contact. Apply anti-seize compound to flange bolt threads if operating in a corrosive environment. Inspect the yoke ears and snap-ring grooves for burrs after installation of the U-joint cross.
- Use a torque wrench -- do not impact-gun flange bolts to final torque
- Re-torque flange bolts after the first 100 miles in service
- Balance the completed shaft assembly after yoke replacement on high-speed applications
Sourcing T35-GMFD-01KU from Universal Driveshafts
Universal Driveshafts maintains inventory of Series 1350 yokes, flanges, and companion hardware for fast-turn drivetrain repairs. The T35-GMFD-01KU ships ready for assembly. Our team can cross-reference OEM part numbers and identify matching U-joint crosses, companion flanges, and shaft tube dimensions on request.
Additional information
| Partn number | T35-GMFD-01K |
|---|---|
| Pilot dia | 0.631″ F |
| Bolt circle dia | 4.330 |
| Bolt hole dia | 0.500 |
| Series | 1350 |
| Brand | UDS |
| Notes | Aluminum Tri Flange, used on 110mm tri-prongs, 16mm ID hole (14mm reducer bushing included). 0.45″ thick base |
| Bolt Holes | 3 |
| Cj to flat | 3.000 |
