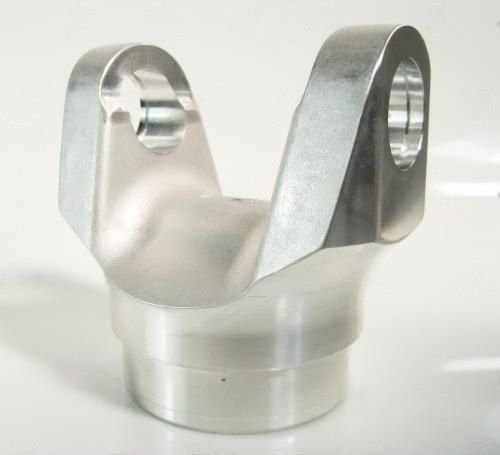

3326-30A – Weld Yokes – 1330 Series – Butt Dia 2.757″ – Tube Dia Wall 3.000X0.125

When you’re ready to install the 3326-30A Weld Yoke, first ensure you’ve checked the spline count and series compatibility. This yoke fits the 1330 Series, which is crucial for proper engagement with your U-joint. The butt diameter measures 2.757 inches, providing a solid connection point, while the tube diameter wall of 3.000 inches and a thickness of 0.125 inches strike a balance between strength and weight. The center U-joint to weld distance is 2.500 inches, so make sure to position it accurately during installation.

Common mistakes include forcing the spline entry, which can damage both the yoke and the mating component. Always verify the spline engagement depth before sliding the yoke onto the shaft. Remember, proper phasing with the opposite yoke is essential for smooth operation. Misalignment can lead to vibrations and premature wear.

• Check spline count and series before installation.
• Ensure proper phasing with the opposite yoke.
• Inspect the butt diameter for a secure fit.
• Verify the center U-joint to weld distance for accurate positioning.
• Use a torque wrench to tighten fasteners to specification.

The 3326-30A is made from aluminum, making it lightweight yet durable for low-duty applications. This yoke is a reliable choice for those looking to maintain performance in their driveline systems.
