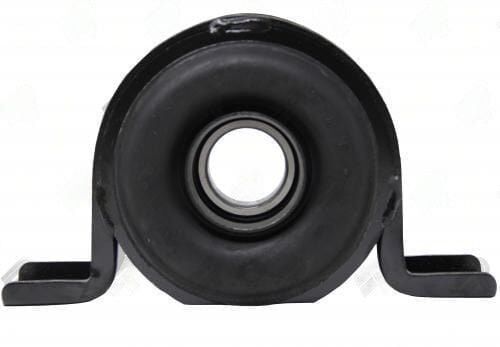

3180-20 – Center Support Bearing – Multiple Application – 1.181″ ID – 2.080″ Center Bearing To Base
$107.69
2 in stock
Description
Multi-application center support bearing with 1.181″ bore and 2.080″ center-to-base height; rubber-isolated assembly for various 30 mm stub shaft two-piece driveshaft platforms.
Full Description
The 3180-20 covers multiple vehicle applications with a 30 mm (1.181") bore stub shaft and a 2.080" center-to-base requirement. The multi-application designation indicates this bearing fits several different models where these dimensions align.
- Bore ID: 1.181" (30 mm) -- verify with micrometer against the stub shaft journal
- Center to base: 2.080" -- an unusual value; measure the removed bearing precisely before ordering
- Rubber-isolated bonded assembly -- no loose isolator to displace during pressing
- Compatible with center support bearing bracket slots on applicable multi-application crossmembers
Warning: the 2.080" dimension does not round conveniently to any standard domestic value (2.000", 2.118", or 2.250"). Selecting a 2.000" or 2.118" unit as a substitute introduces a measurable angle deviation at the center joint. For multi-application SKUs, always measure the removed bearing with a digital caliper and order to the measured dimension, not an approximation. Neapco and Spicer cross-references may exist for this geometry -- check with the supplier if a cross-reference is needed.
Additional information
| Application | MULTIPLE |
|---|---|
| Bearing id | 1.181 |
| Center bearing to base | 2.080 |
| Ctr to ctr of mount holes | 5.875 |
| Partn number | 3180-20 |
