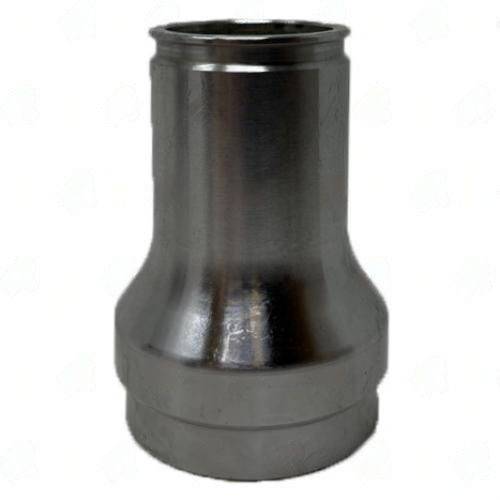

3133-311 – Splined Sleeves & Slip Assemblies – 1.330″ Splines Dia – 31 Splines – Butt Dia 2.344
$56.24
Available on backorder
17 People watching this product now!
Description
3133-311 Splined Slip Assembly — 2.344 butt dia. Proven splined telescoping driveshaft section.
Full Description
The 3133-311 splined slip assembly is a telescoping splined section that allows the driveshaft to change effective length as the suspension cycles. It operates under both rotational load and axial movement simultaneously — heavier-duty requirements than a simple slip yoke on a transmission tailshaft. The 3133-311 splined slip assembly is dimensioned for applications with a specific butt diameter for tube fitment.
3133-311 Splined Slip Assembly — Specs & Tube Fit
The 3133-311 splined slip assembly specs: 2.344 butt dia. Steel construction — standard for high-torque splined assembly applications. The splined interface requires regular lubrication — dry splines under load wear fast and introduce driveline noise before the visible damage appears.
Slip assembly replacement requires matching both the series and the butt diameter. Series determines u-joint compatibility at both ends; butt diameter determines which tube OD this assembly fits. Measure your tube before ordering the 3133-311 splined slip assembly — don't estimate from the existing part's spec label.
Key Features
- Butt dia: 2.344 — tube fitment dimension
- Steel construction
- Splined telescoping design — allows driveshaft length change under load
- Lubrication required — keep spline interface greased for longevity
Specifications
- SKU: 3133-311
- Brand: UDS
- Material: Steel
- Butt Dia: 2.344
Additional information
| Butt dia | 2.344 |
|---|---|
| End to weld | 3.125 |
| Fits to tube | 2.500X0.083 |
| Material | STEEL |
| Partn number | 3133-311 |
| Splines count | 31 |
| Splines dia | 1.330 |
